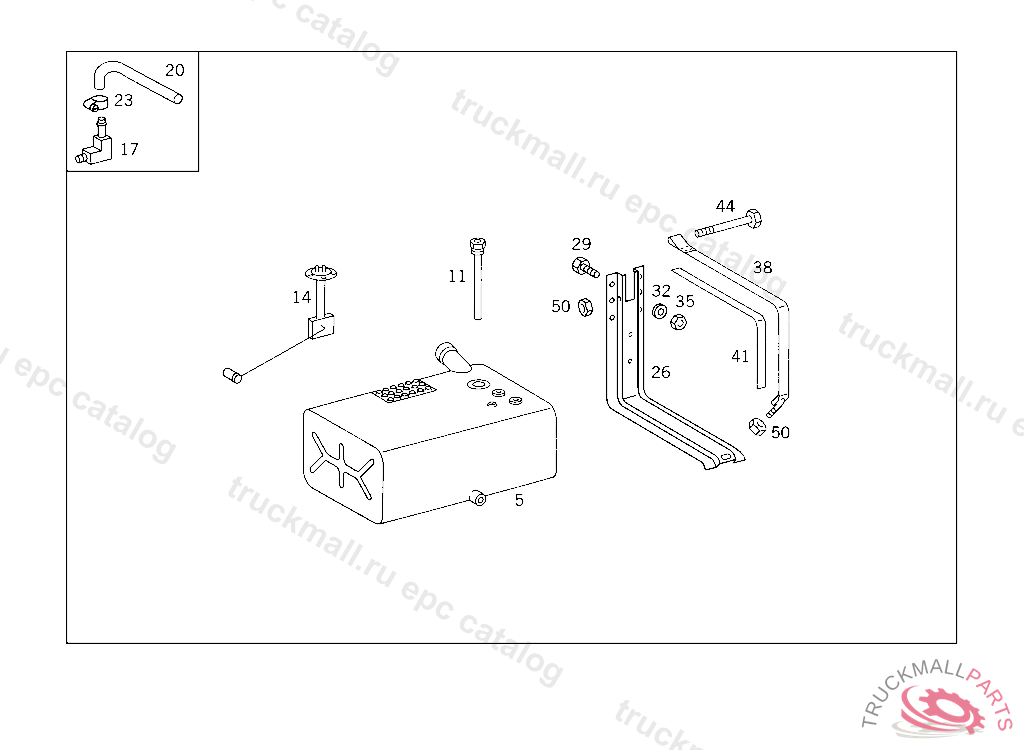

MBO 1218 - 685.288 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
5
11
SUCTION LINE FEED & RETURN
14
SENDER UNIT FUEL GAUGE SENDER UNIT TO FUEL TANK
17
ELBOW FITTING
20
HOSE , ORDER BY THE METER
23
CLAMP
26
29
PART NAME MISSING SCREW
32
PART NAME MISSING WASHER
35
PART NAME MISSING NUT 1/2-13
38
41
44
50
NUT NUT
