49 EXHAUST SYSTEM
›

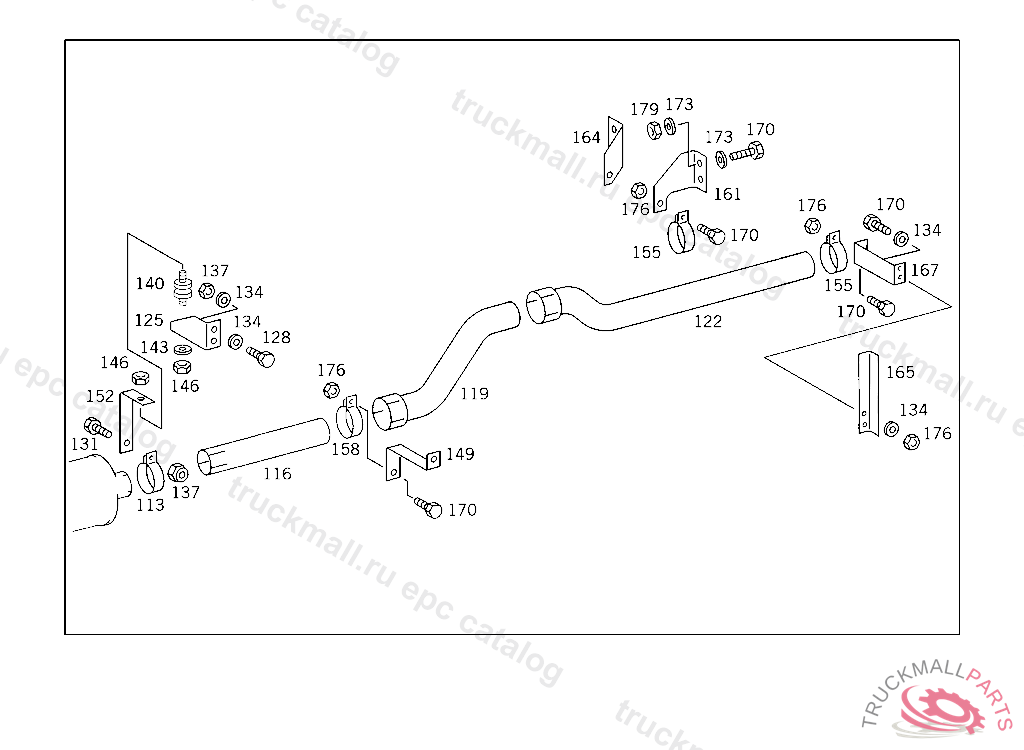

030 EXHAUST SYSTEM IL. 3
Mercedes N000934010005 - ГАЙКА М10
O 1417 685.291
49 EXHAUST SYSTEM - 030 EXHAUST SYSTEM IL. 3
Поз.
Артикул
Описание
113
N071555100500
CLAMP , Replaced By: N071555100501
116
HXM6854923101
116
HXM6854921201
119
HXM6854920004
122
HXM6854901919
122
HXM6854922601
131
Q2309436150
PART NAME MISSING SCREW 3/8-16
134
Q2309114002
PART NAME MISSING SPRING WASHER
137
Q2309901106
PART NAME MISSING NUT
140
A0019873140
RUBBER BUFFER EXHAUST MUFFLER
143
N000125010517
WASHER GROUND CABLE
146
N000934010005
NUT BRACKET TO RETARDER
149
HXM6854920141
152
HXM6854921317
155
N071555100500
CLAMP , Replaced By: N071555100501
158
N071555104501
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
161
HXM6854921417
165
HXM6855420149
167
HXM6854921617
170
Q2309436150
PART NAME MISSING SCREW 3/8-16
173
Q2309114003
PART NAME MISSING WASHER
176
Q2309901106
PART NAME MISSING NUT
179
Q2309901108
PART NAME MISSING NUT 1/2-13
