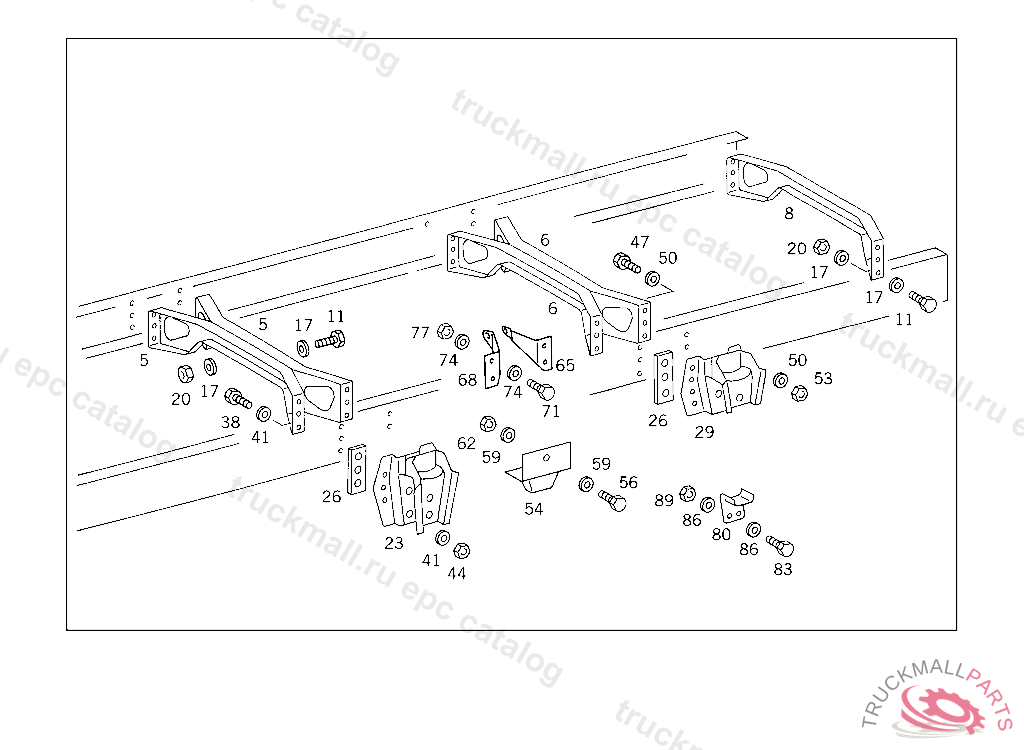

Поз.
Артикул
Описание
5
CROSS MEMBER REAR SPRING FRONT AND REAR BRACKETS, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
5
CROSS MEMBER REAR SPRING FRONT AND REAR BRACKETS, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
5
CROSS MEMBER CENTRAL BEARING CROSS MEMBER
6
CROSS MEMBER REAR SPRING FRONT AND REAR BRACKETS
6
CROSS MEMBER REAR SPRING FRONT AND REAR BRACKETS
8
CROSS MEMBER (REAR CROSS MEMBER)
11
PART NAME MISSING SCREW
17
PART NAME MISSING WASHER
20
PART NAME MISSING NUT 1/2-13
23
SPRING BRACKET REAR SPRING FRONT BRACKET
26
PLATE SPRING BRACKET TO SIDE MEMBER
26
PLATE SPRING BRACKET TO SIDE MEMBER
29
SPRING BRACKET REAR-SPRING REAR BRACKET
38
PART NAME MISSING SCREW, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
41
PART NAME MISSING WASHER
44
PART NAME MISSING NUT 1/2-13
47
PART NAME MISSING SCREW 5/8-11
50
PART NAME MISSING WASHER 5/8-1.312-.149 Z
53
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
54
RUBBER BUFFER
56
PART NAME MISSING SCREW 5/8-11
59
PART NAME MISSING WASHER 5/8-1.312-.149 Z
62
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
65
65
68
68
71
PART NAME MISSING SCREW
74
PART NAME MISSING WASHER
77
PART NAME MISSING NUT 1/2-13
80
HELPER SPRING BRACKET
83
PART NAME MISSING SCREW 3/8-16 F.G
86
PART NAME MISSING SPRING WASHER
89
PART NAME MISSING NUT
