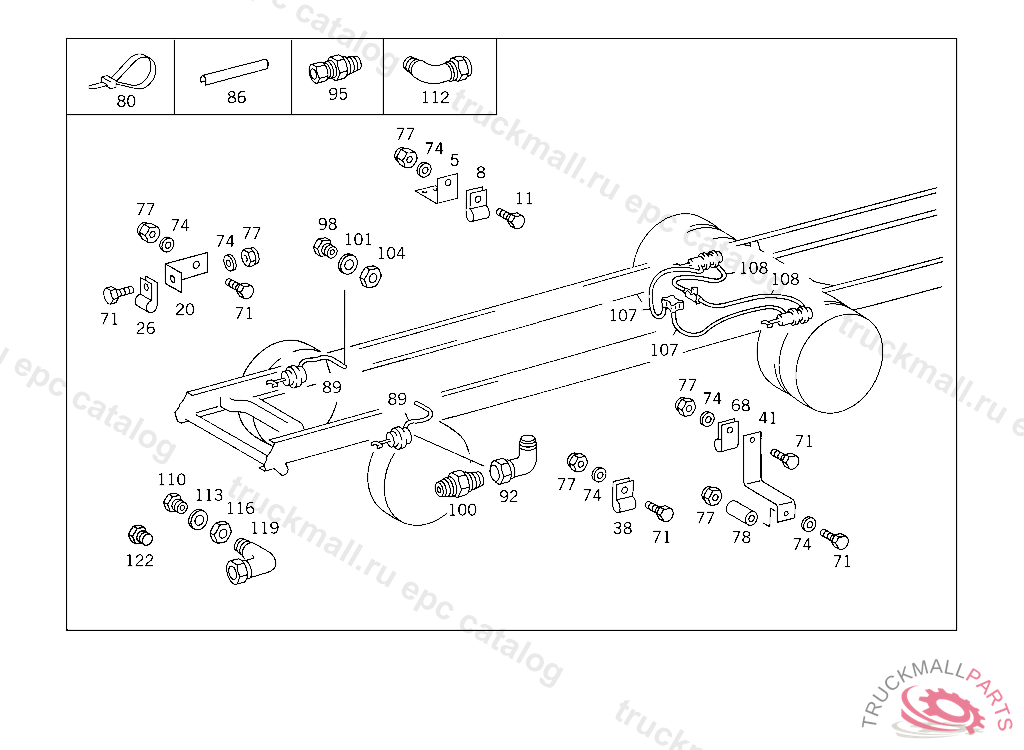

Поз.
Артикул
Описание
5
PART NAME MISSING BRACKET, INAPPLICABLE TO BM 685.458-002
8
PART NAME MISSING CLAMP
11
PART NAME MISSING SCREW 1/4-20
20
BRACKET BRACKET
26
PART NAME MISSING CLAMP
38
PART NAME MISSING CLAMP
41
PART NAME MISSING BRACKET
68
PART NAME MISSING CLAMP
71
PART NAME MISSING SCREW 1/4-20
74
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
77
NUT NUT
78
SPACER TUBE
80
LOOM TIE LINE MOUNTING
80
PART NAME MISSING LOOM TIE
80
PART NAME MISSING LOOM TIE
86
INSULATION. EDGE GUARD SECTION LINE TO CROSS AND SIDE MEMBERS, ORDER BY THE METER
89
BRAKE HOSE FRONT AXLE,DIAPHRAGM CYLINDER
92
PART NAME MISSING ELBOW FITTING
95
PART NAME MISSING CONNECTOR 3/8 NPTFM X 1/2 T
98
PART NAME MISSING FITTING 3/8 NPT
100
PART NAME MISSING FITTING 1/8 NPT X 1/4T
101
PART NAME MISSING WASHER 1 X 1,590 Z, INAPPLICABLE TO BM 685.458-002
104
PART NAME MISSING NUT 1-14, INAPPLICABLE TO BM 685.458-002
107
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER
108
BRAKE HOSE FROM RELAY VALVE TO COMBINATION CYLINDER, INAPPLICABLE TO BM 685.458-002
110
PART NAME MISSING FITTING 3/8 NPT
112
112
113
PART NAME MISSING WASHER 1 X 1,590 Z, INAPPLICABLE TO BM 685.458-002
116
PART NAME MISSING NUT 1-14, INAPPLICABLE TO BM 685.458-002
119
PART NAME MISSING ELBOW FITTING
122
PART NAME MISSING PLUG 3/8-18 NPTF
