OMC 1425 L
685.453
32 SPRINGS AND SUSPENSION
560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 5

Mercedes N000137018202 - ШАЙБА

OMC 1425 L 685.453

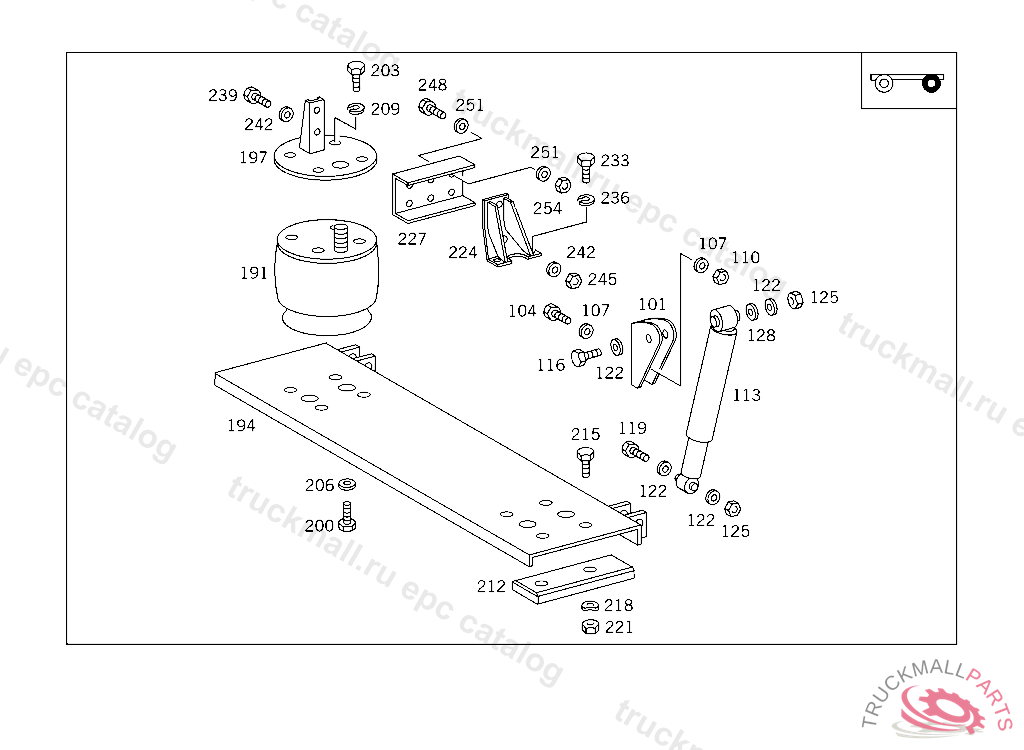

32 SPRINGS AND SUSPENSION - 560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 5

Поз.
Артикул
Описание
101
HXM6853231835
SUPPORT SHOCK ABSORBER
104
Q2309444175
PART NAME MISSING SCREW 5/8-11
107
Q2309114007
PART NAME MISSING LINK TO AXLE
110
Q2309901110
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
113
HXM6853261000
SHOCK ABSORBER
116
Q2309446550
PART NAME MISSING SCREW 3/4-10 X 5 1/2 FG8, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
119
Q2309446450
PART NAME MISSING SCREW 3/4-10
122
Q2309114004
PART NAME MISSING WASHER 3/4
125
Q2309901112
PART NAME MISSING NUT 3/4-10, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
191
HXM6853200321
AIR SPRING BELLOWS
194
HXM6853280341
SUPPORT AIR SPRING BELLOWS
197
HXM6853280540
BRACKET TOP AIR SPRING BELLOWS,REAR AXLE
200
Q2309440125
PART NAME MISSING SCREW
203
Q2309436075
PART NAME MISSING SCREW
206
Q2309319013
PART NAME MISSING WASHER 1/2
209
Q2309319011
PART NAME MISSING LOCK WASHER 3/8
212
HXM6853260425
PLATE
215
N000000005768
SCREWM 18X1.5X100
218
N000137018202
SPRING WASHER BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE
221
N000935018001
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE
224
HXM6853280440
BRACKET AIR SPRING BELLOWS
227
HXM6853280640
BRACKET AIR SPRING BELLOWS
233
Q2309436100
PART NAME MISSING SCREW
236
Q2309319011
PART NAME MISSING LOCK WASHER 3/8
239
Q2309444200
PART NAME MISSING SCREW 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
242
Q2309114007
PART NAME MISSING LINK TO AXLE
245
Q2309901110
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
248
Q2309440175
PART NAME MISSING SCREW
251
Q2309114003
PART NAME MISSING WASHER
254
Q2309901108
PART NAME MISSING NUT 1/2-13
