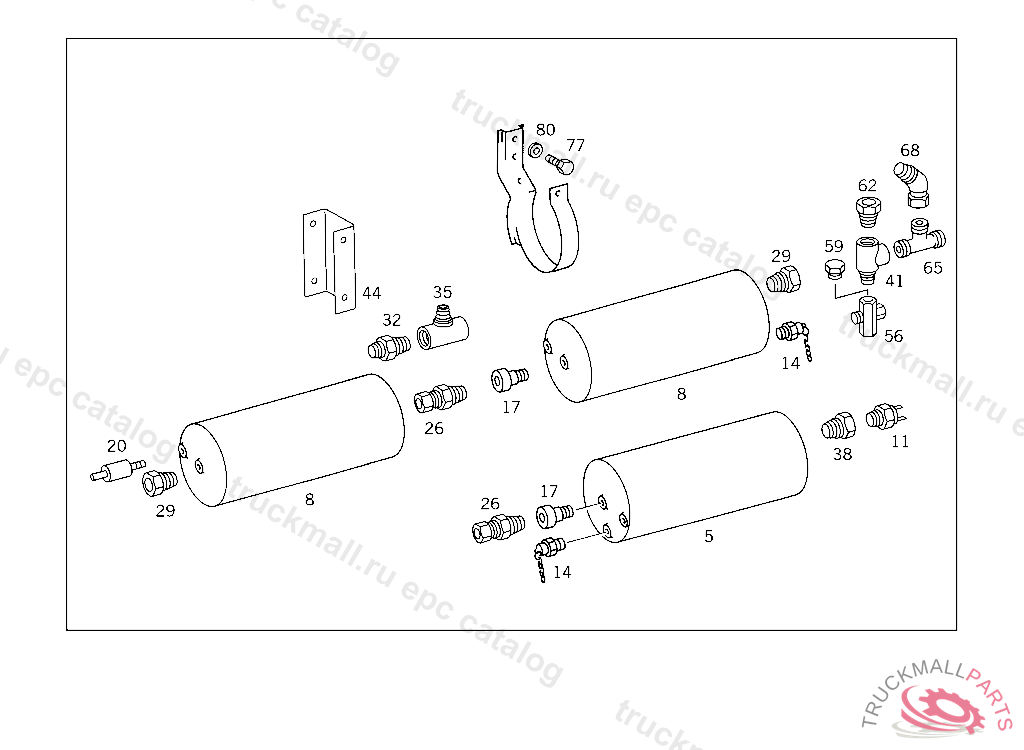

Поз.
Артикул
Описание
5
PART NAME MISSING AIR RESERVOIR
8
PART NAME MISSING AIR RESERVOIR
11
SENDER UNIT AT AIR RESERVOIR
14
VALVE (DRAIN VALVE)
17
VALVE VALVE
20
PART NAME MISSING SAFETY VALVE
26
PART NAME MISSING FITTING 1/2 NPTFM X 5/8 T
29
PART NAME MISSING FITTING
32
PART NAME MISSING FITTING
35
PART NAME MISSING T-FITTING
38
PART NAME MISSING FITTING "22"
41
PART NAME MISSING T-FITTING
44
PART NAME MISSING BRACKET
56
PART NAME MISSING PRESSURE RELIEF VALVE
59
PART NAME MISSING PLUG 3/8-18 NPTF
62
PART NAME MISSING CONNECTOR 3/8 NPTFM X 1/4 NPTFH
65
T-FITTING
68
PART NAME MISSING ELBOW FITTING 45 GR. 1/2NPTFM X 5/8 T
77
PART NAME MISSING SCREW 3/8-16 F.G
80
PART NAME MISSING SPRING WASHER
