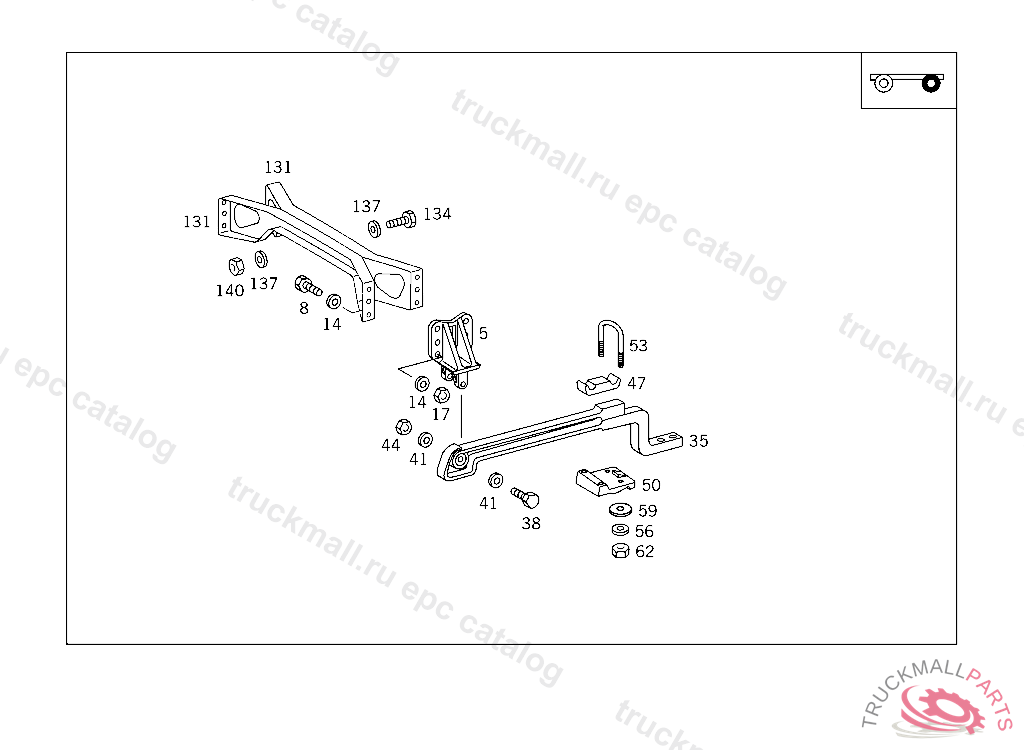

Поз.
Артикул
Описание
5
REAR SPRING BRACKET FRONT
8
PART NAME MISSING SCREW
8
PART NAME MISSING SCREW 5/8-11
14
PART NAME MISSING WASHER 5/8-1.312-.149 Z
17
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
35
CONTROL ARM , Replaced By: A3823507506
38
PART NAME MISSING SCREW 7/8-9
41
PART NAME MISSING WASHER 7/8
44
PART NAME MISSING NUT
47
PLATE
50
PAD
53
CLAMP
56
WASHER SHIM TO AXLE 3/4
59
PART NAME MISSING SHIM
62
PART NAME MISSING NUT 3/4-16, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
131
CROSS MEMBER
134
PART NAME MISSING SCREW
137
PART NAME MISSING WASHER
140
PART NAME MISSING NUT 1/2-13
