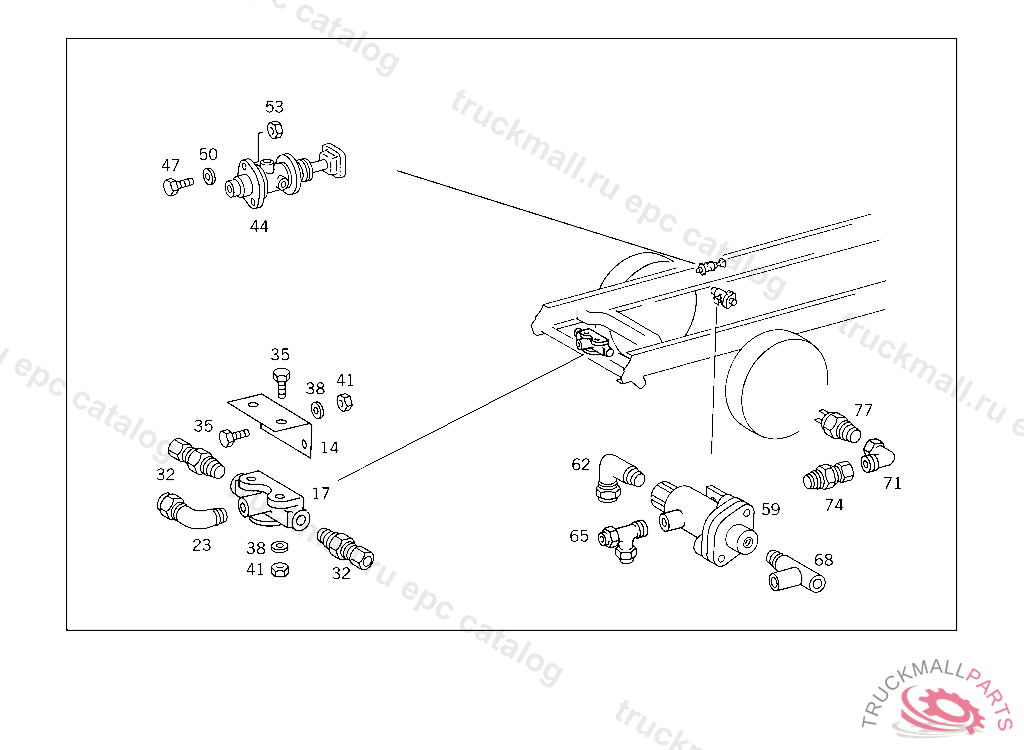

Поз.
Артикул
Описание
14
MOUNTING BRACKET TWO-WAY VALVE
17
VALVE (QUICK-RELEASE VALVE),FRONT AXLE
23
PART NAME MISSING SEAL RING
32
PART NAME MISSING CONNECTOR 3/8 NPTFM X 1/2 T
35
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
38
WASHER VALVE TO BRACKET 5/16
41
PART NAME MISSING NUT
44
VALVE (HAND BRAKE VALVE)
47
PART NAME MISSING SCREW 1/4-20
50
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
53
NUT NUT
59
VALVE (CHECK VALVE)
62
PART NAME MISSING ELBOW FITTING, INAPPLICABLE TO BM 685.458-002
65
PART NAME MISSING T-FITTING, INAPPLICABLE TO BM 685.458-002
68
PART NAME MISSING T-FITTING 1/4 NPTFM. HMH
71
ELBOW FITTING , INAPPLICABLE TO BM 685.458-002
74
PART NAME MISSING CONNECTION: "DEL", INAPPLICABLE TO BM 685.458-002
77
SENDER UNIT BRAKE VALVE,CONNECTION: "21", INAPPLICABLE TO BM 685.458-002
999
VALVE (SOLENOID VALVE) RV-3, INAPPLICABLE TO BM 685.458-002
999
CLAMP SOLENOID VALVE, INAPPLICABLE TO BM 685.458-002
999
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
999
SCREW SCREW 1/4-20,3AM 685442 50 038885
999
PART NAME MISSING SCREW 1/4-20
999
NUT NUT
