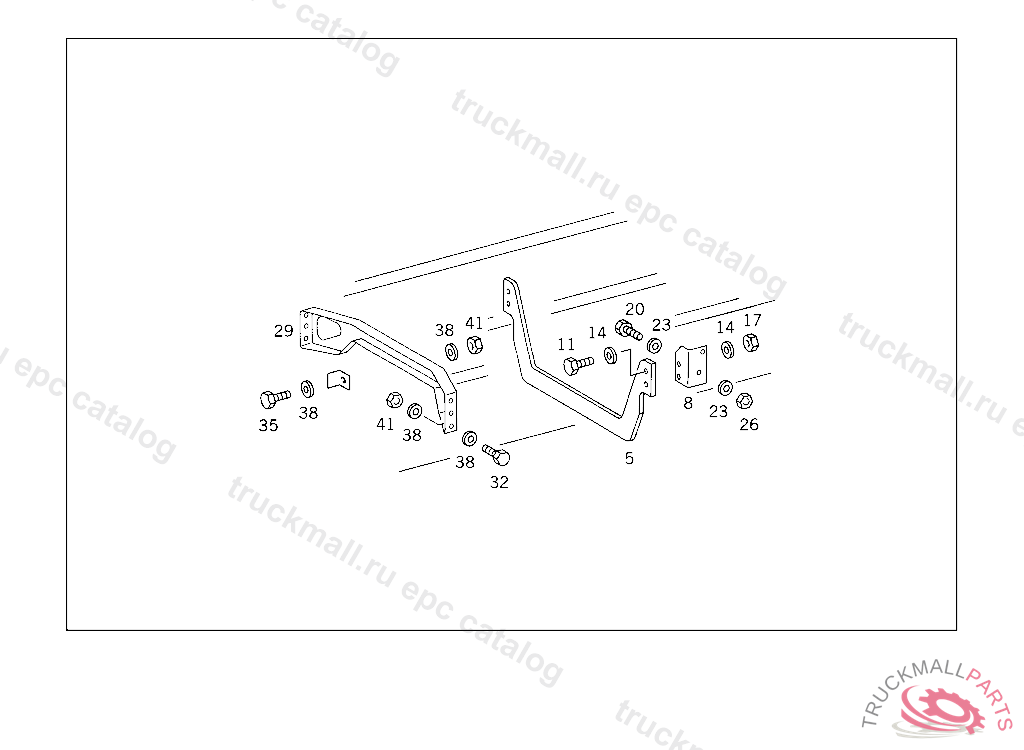

OMC 1425 - 685.459 - 31 FRAME
Поз.
Артикул
Описание
5
ENGINE SUPPORT
8
BRACKET LEFT
8
BRACKET RIGHT
11
PART NAME MISSING SCREW
14
PART NAME MISSING WASHER 5/8-1.312-.149 Z
17
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
20
PART NAME MISSING SCREW
23
PART NAME MISSING WASHER
26
PART NAME MISSING NUT 1/2-13
29
CROSS MEMBER CENTRAL BEARING CROSS MEMBER
32
PART NAME MISSING SCREW
35
PART NAME MISSING SCREW
38
PART NAME MISSING WASHER
41
PART NAME MISSING NUT 1/2-13
