Поз.
Артикул
Описание

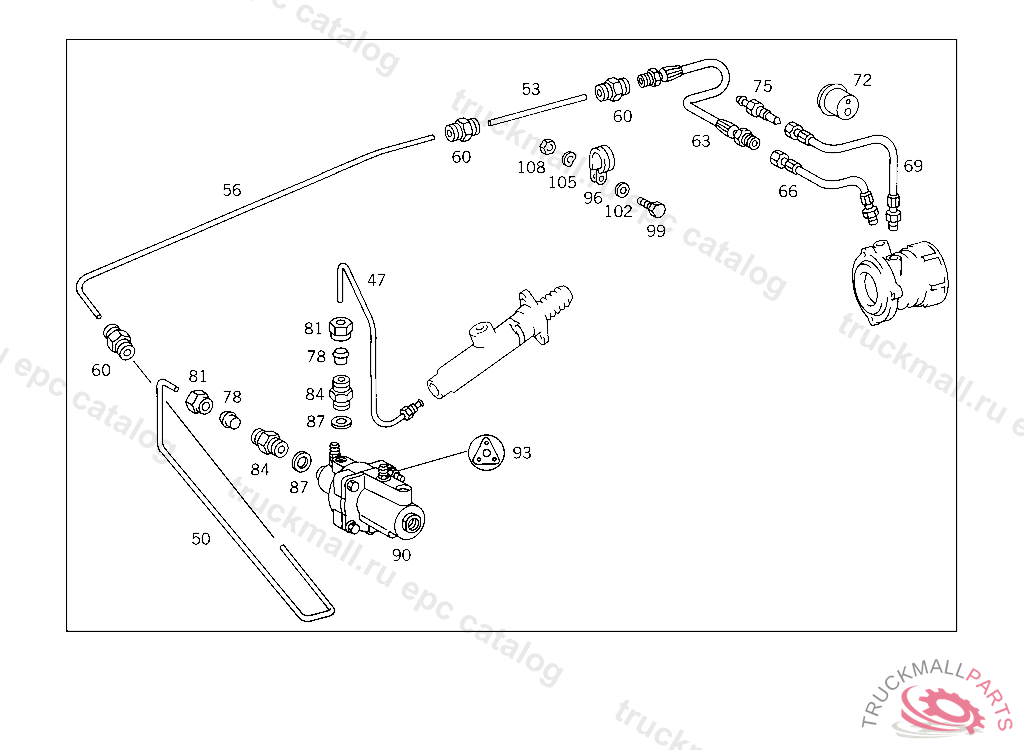

53
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
56
PIPE FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE
60
FITTING FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER
63
HOSE FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER
66
HOSE SLAVE CYLINDER
69
HOSE
72
LOCKING CAP
75
STUD
90
CLUTCH BOOSTER CLUTCH PEDAL PRESSURE BOOST
93
GASKET KIT CYLINDER TO 000 295 27 18
96
CLAMP ,K 147121, Replaced By: N000000000319
99
PART NAME MISSING SCREW 1/4-20
102
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
105
PART NAME MISSING SPRING WASHER
108
PART NAME MISSING NUT 1/4-20
