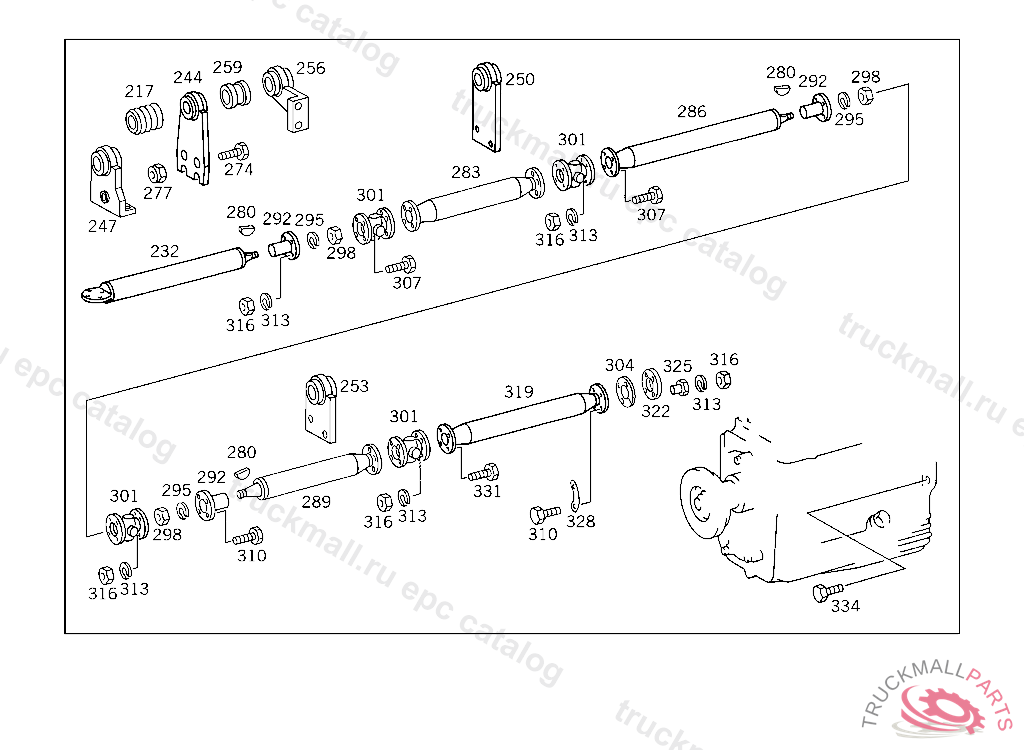

Поз.
Артикул
Описание
217
BOOT SHIFTING TUBE
232
SHIFTING TUBE FRONT
244
GUIDE SHIFTING TUBE
247
GUIDE SHIFTING TUBE
250
GUIDE SHIFTING TUBE,D 196083
253
GUIDE SHIFTING TUBE,D 196082
256
GUIDE SHIFTING TUBE
259
BUSHING , Replaced By: A3572680050
274
SCREW POWER CYLINDER TO BEARING BRACKET
277
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
280
WOODRUFF KEY FLANGE TO SHIFTING TUBE
283
SHIFTING TUBE CENTRAL
289
SHIFTING TUBE CENTRAL 1228 MM
292
CONNECTOR FLANGE TO SHIFTING TUBE
295
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
298
NUT FUEL TANK TO SUPPORT
301
JOINT REAR SHIFTING ROD
301
JOINT REAR SHIFTING ROD
304
SPACER WASHER5 MM
304
SPACER WASHER3 MM
304
SPACER WASHER2 MM
307
SCREW SHIFTING TUBE TO TRANSMISSION
310
SCREW SHIFTING ROD TO TRANSMISSION
316
NUT BATTERY CASE
319
SHIFTING TUBE REAR
322
CONNECTOR
325
BUSHING
328
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
331
SCREW AIR DUCT TO CAB
334
SCREW SHOCK ABSORBER TO RAIL
