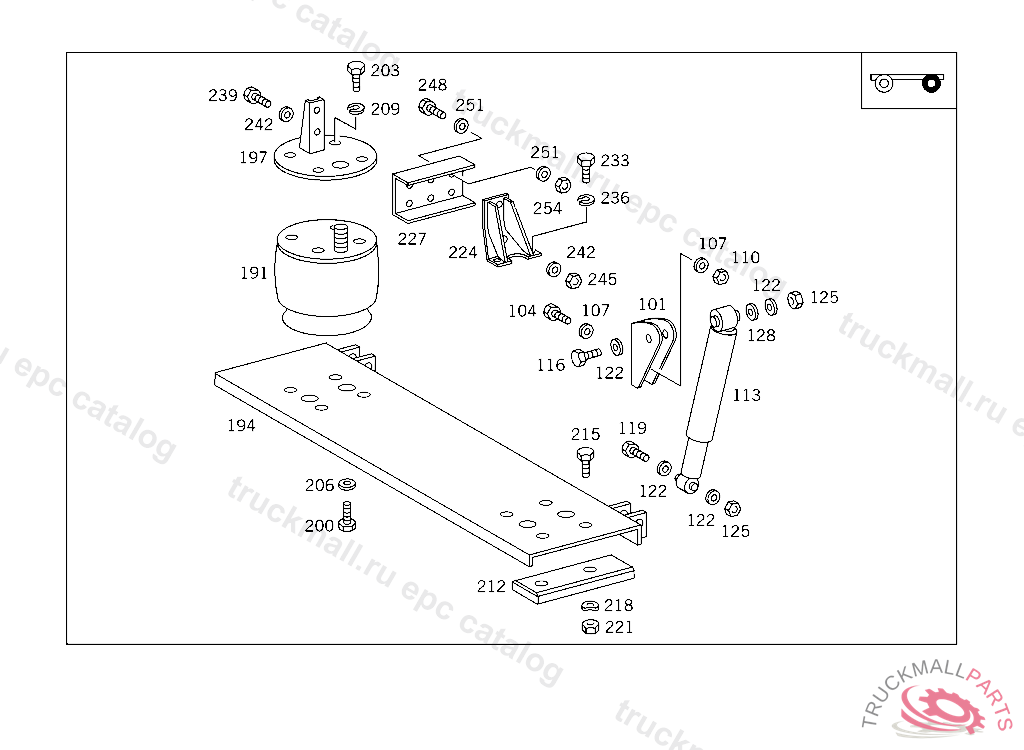

Поз.
Артикул
Описание
101
SUPPORT SHOCK ABSORBER
104
PART NAME MISSING SCREW 5/8-11
107
PART NAME MISSING LINK TO AXLE
110
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
113
SHOCK ABSORBER
116
PART NAME MISSING SCREW 3/4-10 X 5 1/2 FG8, INAPPLICABLE TO BM 685.441-327,310 BM 685.448-310
119
PART NAME MISSING SCREW 3/4-10
122
PART NAME MISSING WASHER 3/4
125
PART NAME MISSING NUT 3/4-10, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
128
PART NAME MISSING SHIM
191
AIR SPRING BELLOWS
194
SUPPORT AIR SPRING BELLOWS
197
BRACKET TOP AIR SPRING BELLOWS,REAR AXLE
200
PART NAME MISSING SCREW
203
PART NAME MISSING SCREW
206
PART NAME MISSING WASHER 1/2
209
PART NAME MISSING LOCK WASHER 3/8
212
PLATE
215
SCREWM 18X1.5X100
218
SPRING WASHER BELL HOUSING WITH TRANSMISSION TO INTERMEDIATE FLANGE
221
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE
224
BRACKET AIR SPRING BELLOWS
227
BRACKET AIR SPRING BELLOWS
233
PART NAME MISSING SCREW
236
PART NAME MISSING LOCK WASHER 3/8
239
PART NAME MISSING SCREW 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
242
PART NAME MISSING LINK TO AXLE
245
PART NAME MISSING NUT 5/8-11, ONLY APPLICABLE TO BM 685.441-327,310 BM 685.448-310
248
PART NAME MISSING SCREW
251
PART NAME MISSING WASHER
254
PART NAME MISSING NUT 1/2-13
