Поз.
Артикул
Описание

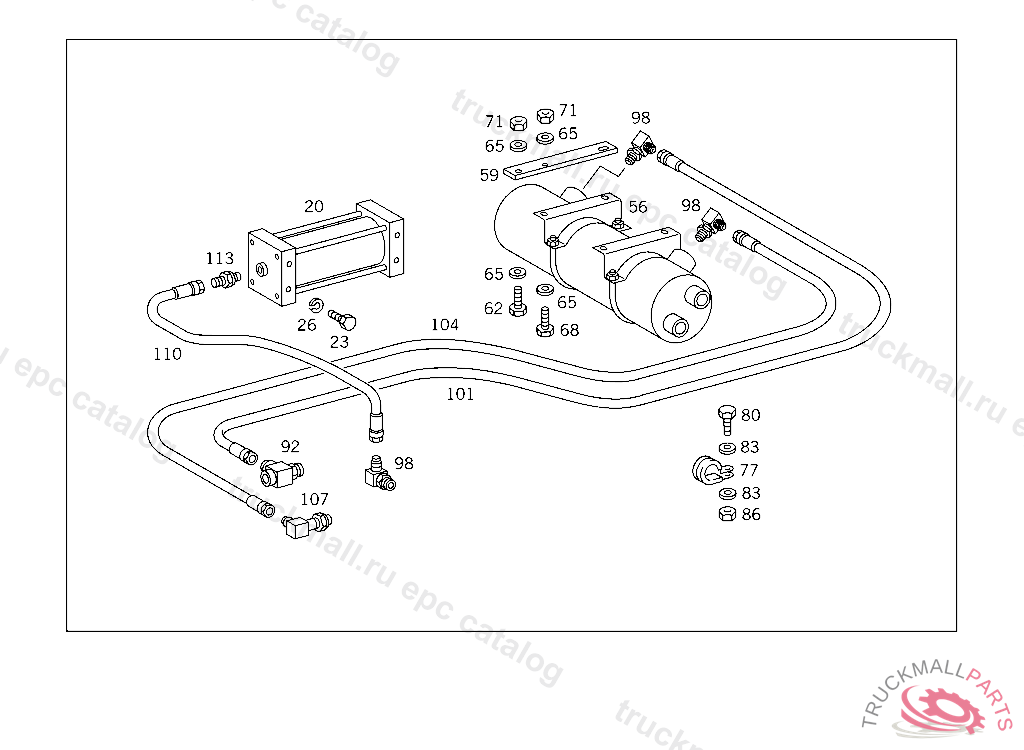

20
OIL TANK
23
PART NAME MISSING SCREW
26
PART NAME MISSING LOCK WASHER 1/2
56
OIL COOLER
59
PLATE
62
PART NAME MISSING SCREW 3/8-16 F.G
65
PART NAME MISSING SPRING WASHER
68
PART NAME MISSING SCREW 3/8-16
71
PART NAME MISSING NUT
77
PART NAME MISSING CLAMP
80
SCREW SCREW 1/4-20,3AM 685442 50 038885
83
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
86
NUT NUT
92
ELBOW FITTING
92
ELBOW FITTING LINE CONNECTION
98
ELBOW FITTING
98
ELBOW FITTING LINE CONNECTION
101
HOSE FROM TRANSMISSION TO OIL COOLER
104
HOSE FROM OIL COOLER TO TRANSMISSION
107
ELBOW FITTING LINE CONNECTION
110
HOSE
113
ELBOW FITTING LINE CONNECTION
999
VALVE GEAR
999
LINKAGE
999
REGULATOR VALVE
999
REGULATOR VALVE
999
REGULATOR VALVE
999
REGULATOR VALVE
999
PLATE
999
SCREW
999
FITTING
999
FITTING
