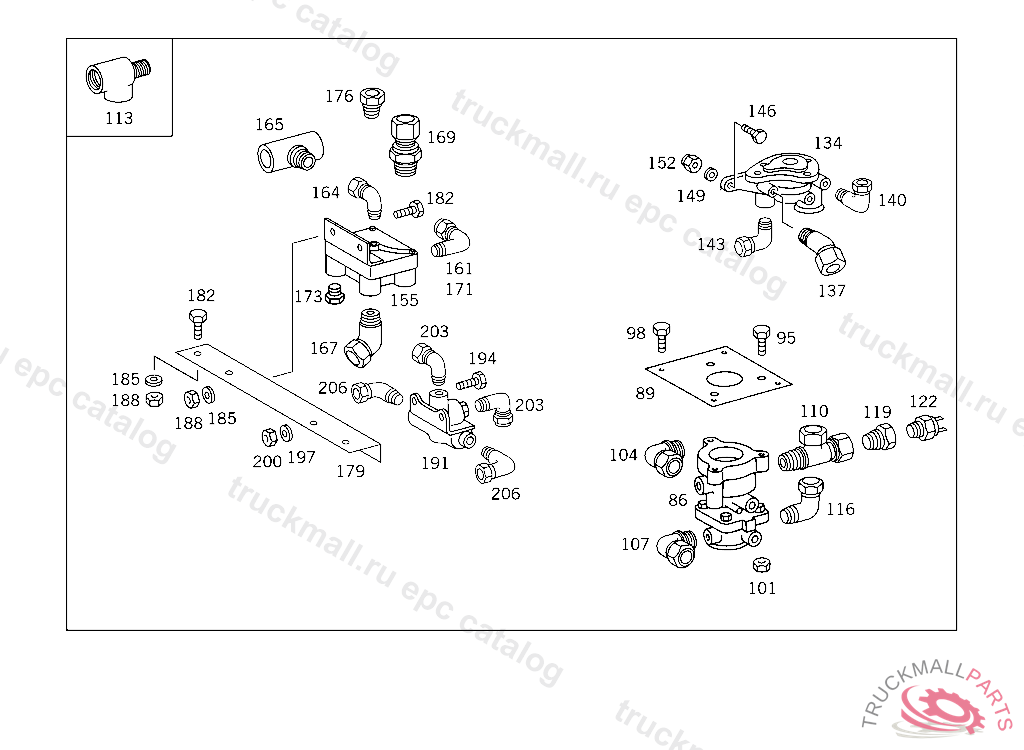

Поз.
Артикул
Описание
86
BRAKE VALVE
89
MOUNTING BRACKET BRAKE VALVE
95
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
98
PART NAME MISSING SCREW 5/16-18
101
PART NAME MISSING NUT
104
PART NAME MISSING ELBOW FITTING 90 GR. 3/8 NPTFM X 5/8 T
107
PART NAME MISSING ELBOW FITTING
110
T-FITTING
113
PART NAME MISSING FITTING
116
PART NAME MISSING SEAL RING
119
PART NAME MISSING CONNECTOR 3/8 NPTFM X 1/4 NPTFH
122
SENDER UNIT BRAKE VALVE,CONNECTION: "21", INAPPLICABLE TO BM 685.458-002
134
PART NAME MISSING VALVE
137
PART NAME MISSING ELBOW FITTING 45 GR. 1/4 NPTFM X 3/8 T
140
PART NAME MISSING ELBOW FITTING 1/4 NPTFM X 3/8T, INAPPLICABLE TO BM 685.458-002
143
PART NAME MISSING FITTING
146
PART NAME MISSING SCREW 5/16-18
149
WASHER VALVE TO BRACKET 5/16
152
PART NAME MISSING NUT
155
VALVE (RELAY VALVE)
161
PART NAME MISSING ELBOW FITTING 90 1/2 NPTF X 5/8 T, ONLY APPLICABLE TO BM 685.441-327,310
164
PART NAME MISSING ELBOW FITTING 1/4 NPTFM X 3/8T, INAPPLICABLE TO BM 685.458-002
165
PART NAME MISSING T-FITTING
167
PART NAME MISSING SEAL RING
169
PART NAME MISSING FITTING
171
PART NAME MISSING RELAY VALVE,CONNECTION: "2"
173
PART NAME MISSING SCREW PLUG 1/2 NPTFM X 14 NPTF
176
PART NAME MISSING FITTING
179
MOUNTING BRACKET VALVE TO CROSS MEMBER
182
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
185
WASHER VALVE TO BRACKET 5/16
188
PART NAME MISSING NUT
191
PART NAME MISSING VALVE
194
PART NAME MISSING BRACKET TO FRONT CROSS MEMBER 5/16-18 X 1 FG8
197
WASHER VALVE TO BRACKET 5/16
200
PART NAME MISSING NUT
203
PART NAME MISSING ELBOW FITTING 1/4 NPTFM X 3/8T, INAPPLICABLE TO BM 685.458-002
206
PART NAME MISSING ELBOW FITTING
999
VALVE (SOLENOID VALVE) RV-3, INAPPLICABLE TO BM 685.458-002
999
CLAMP SOLENOID VALVE, INAPPLICABLE TO BM 685.458-002
999
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
999
SCREW SCREW 1/4-20,3AM 685442 50 038885
999
PART NAME MISSING SCREW 1/4-20
999
NUT NUT
