Главная
›
Mercedes
›
BUS
›
MBO 1219 PLUS, MBO 1419
›
685.529
›
50 RADIATOR
›

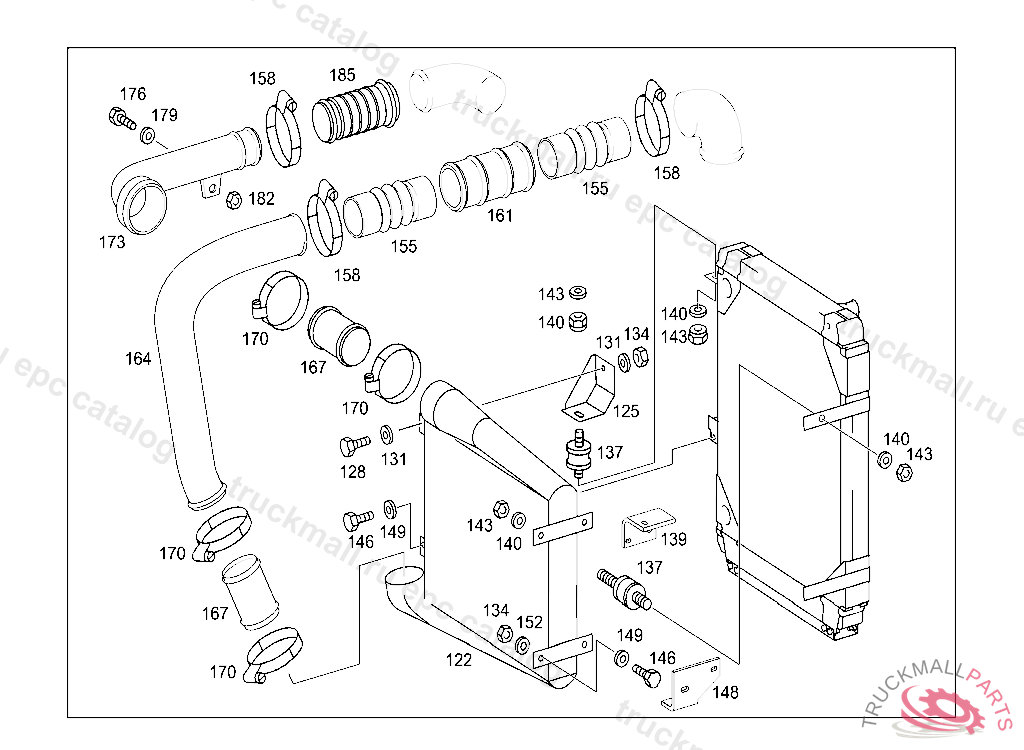

510 CHARGE AIR INTERCOOLER IL. 1
Mercedes A6855287782 -
MBO 1219 PLUS, MBO 1419 685.529
50 RADIATOR - 510 CHARGE AIR INTERCOOLER IL. 1
Поз.
Артикул
Описание
122
HLM6855002203
RADIATOR
122
A6855000001
125
A6855001331
125
QTA012777000
128
QT2309434125
SCREW BRACKET TO STRUT 5/16-18
131
QT2309114006
WASHER VALVE TO BRACKET 5/16-.640
134
QT2309901105
PART NAME MISSING NUT
137
A6855040014
BEARING
137
A0009870439
RUBBER BUFFER RADIATOR MOUNTING,TOP M10X50X30
139
A6855010622
140
N210980010010
NUT , Replaced By: N000934010005
140
N000934010005
NUT BRACKET TO RETARDER
143
N221822010000
WASHER10
143
N000127010202
LOCK WASHER , Replaced By: N912004010102
146
N910105006002
HEXAGON HEAD BOLT
146
QT2309434100
PART NAME MISSING SCREW
148
A6855010422
149
QT2300600025
WASHER HAND BRAKE VALVE 1/4
149
QT2309426301
WASHER5/16
152
QT2309318010
PART NAME MISSING , Replaced By: A6889900048
155
A6855287782
HOSE
155
A0005018982
CHARGE AIR HOSE
158
A0059972890
LOOM TIE. CLAMP HOSE TO RADIATOR AND TO ENGINE
158
A6859950110
CLAMP68-85MM
161
QT0127696000
161
A6855281108
164
QTA0127692000
167
A0020946982
HOSE AIR INTAKE PIPE TO ENGINE
170
A6859950010
CLAMP87-112MM
170
A0059970690
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
173
QT0127688000
173
QTA0127855000
173
A6855281208
176
QT2309436100
PART NAME MISSING SCREW
179
QT2309114002
WASHER SHIFTING ROD 3/8
182
QT2309336008
185
A0005019082
HOSE
