Главная
›
Mercedes
›
BUS
›
MBO 1219 PLUS, MBO 1419
›
685.529
›
50 RADIATOR
›
030 RADIATOR IL. 1
Mercedes N000934010005 - ГАЙКА М10

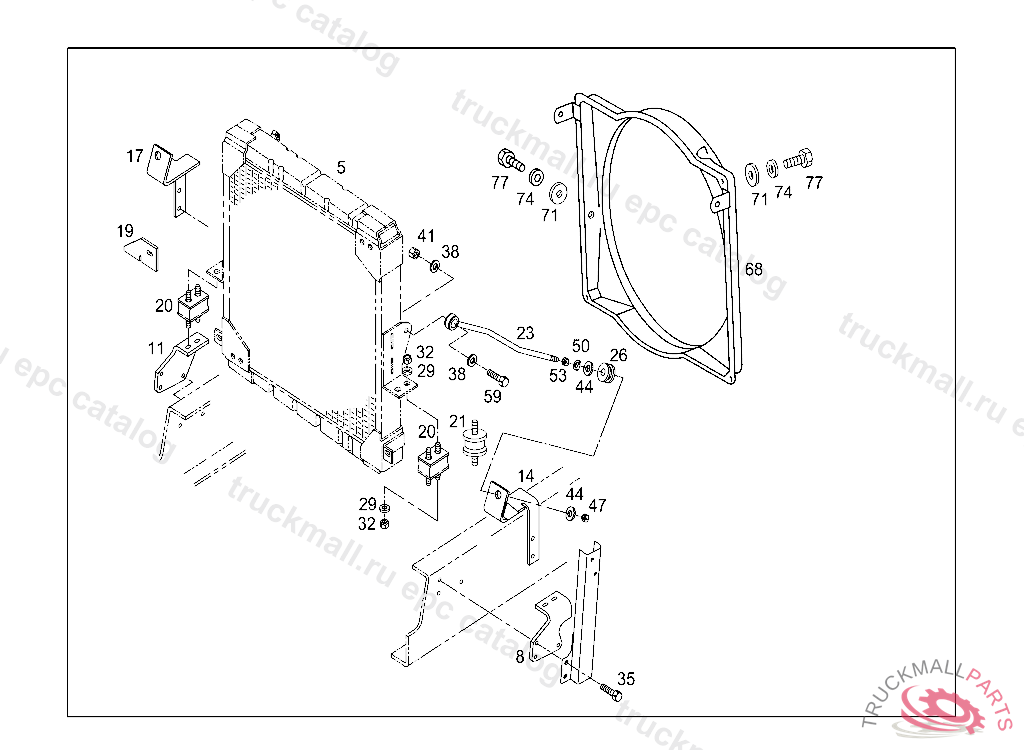

MBO 1219 PLUS, MBO 1419 685.529
50 RADIATOR - 030 RADIATOR IL. 1
Поз.
Артикул
Описание
5
A6855000802
5
A6850007350
5
A6855000002
5
QTA0520224000
5
QTA0520434000
5
QTA0520435000
8
QT0519932000
11
QT0519933000
14
QT0520477000
17
QTA0520288001
19
A6855010522
20
QTF1828048000
21
A6855040014
BEARING
23
A6855040122
23
QT0519934000
26
A6805040082
29
N221822010000
WASHER10
29
N000127010202
LOCK WASHER , Replaced By: N912004010102
29
QT2309114011
WASHER 3/8
32
QT2309901106
NUT. PART NAME MISSING NUT
32
N000934010005
NUT BRACKET TO RETARDER
35
QT2309440225
SCREW SUPPORT TO ALTERNATOR 1/2-13
38
QT2309114003
PART NAME MISSING CONSOLE TO FRAME 1/2
38
QT2309440200
PART NAME MISSING1/2-13
41
QT2309901108
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
44
QT2309012013
WASHER5/16
47
QT2309901107
PART NAME MISSING CONSOLE TO FRAME 7/16-12
50
QT2309319012
53
QT2309339009
59
QT2309440250
SCREW1/2-13, NOT USED
68
HLM6855053255
68
A6855050655
71
QT2309012014
WASHER
74
QT2309319010
LOCK WASHER5/16
77
QT2309434100
PART NAME MISSING SCREW
