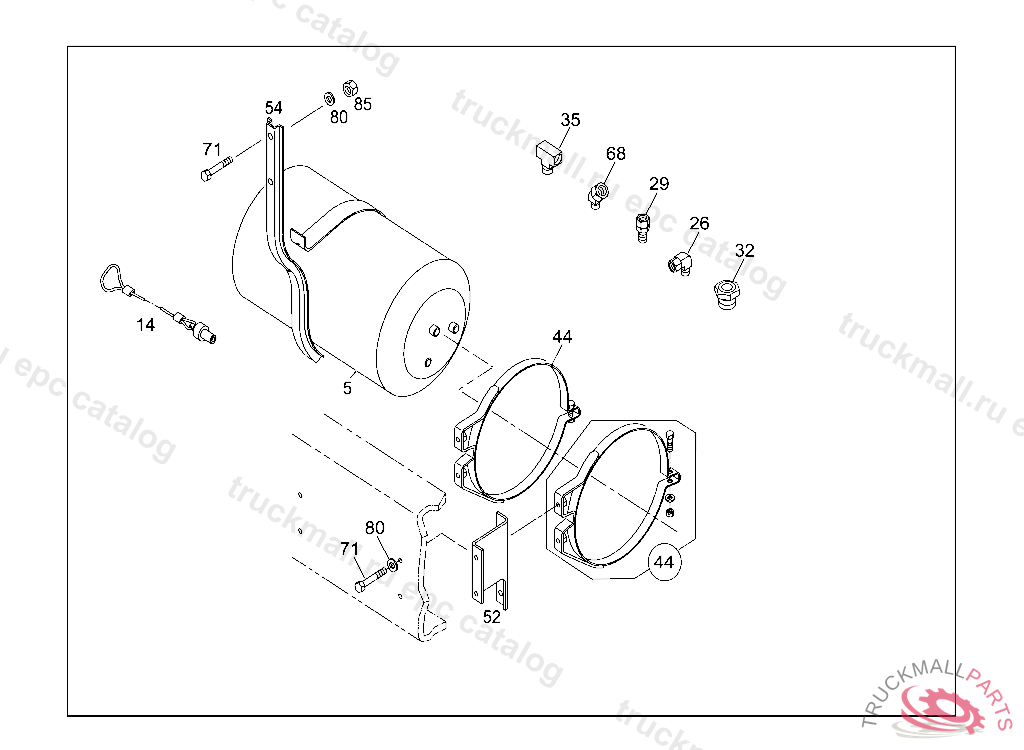

Поз.
Артикул
Описание
5
RESERVOIR AIR RESERVOIR, Replaced By: A6854300203
5
RESERVOIR AIR RESERVOIR 28.5 L
14
VALVE DRAIN VALVE
14
VALVE DRAIN VALVE
26
ELBOW FITTING AT AIR RESERVOIR
29
FITTING AT AIR RESERVOIR
32
FITTING AT AIR RESERVOIR
32
FITTING AT AIR RESERVOIR
35
T-FITTING AT AIR RESERVOIR
44
BRACKET AIR RESERVOIR
52
BRACKET RIGHT AIR RESERVOIR
52
BRACKET LEFT AIR RESERVOIR
68
ELBOW FITTING45GR. NPTFM X 5/8T
71
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
80
WASHER SHIFTING ROD 3/8
85
NUT. PART NAME MISSING NUT
