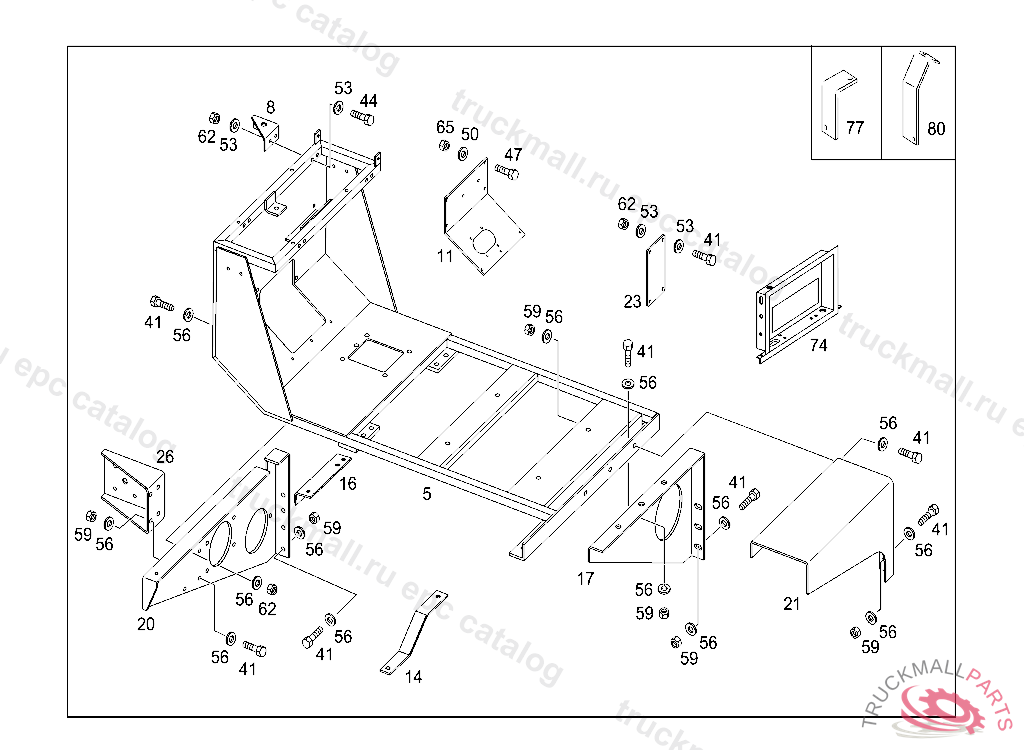

BUS N/N - 685.536 - 62 FRONT PANEL
Поз.
Артикул
Описание
5
BODY
5
BODY
5
BODY
8
BRACKET
11
COVERING
11
COVERING
14
BRACKET ,036614
16
BRACKET
17
BRACKET
20
BRACKET
20
BRACKET
21
BRACKET
23
BRACKET
26
BRACKET
41
PART NAME MISSING
41
PART NAME MISSING SCREW
41
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
44
SCREW5/16-18,MAO 10055/02
47
SCREW , Replaced By: QT23-10410-150
47
SCREW10-24
50
WASHER10
53
WASHER VALVE TO BRACKET 5/16-.640
56
PART NAME MISSING CONSOLE TO FRAME 1/2
59
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
62
PART NAME MISSING NUT
65
NUT10
74
PLATE
77
BRACKET ,036615
80
BRACKET ,036615
999
WASHER
999
NUT
999
SCREW LINE MOUNTING 5/16-18
999
SCREW
999
PART NAME MISSING SCREW
999
NUT. PART NAME MISSING NUT
