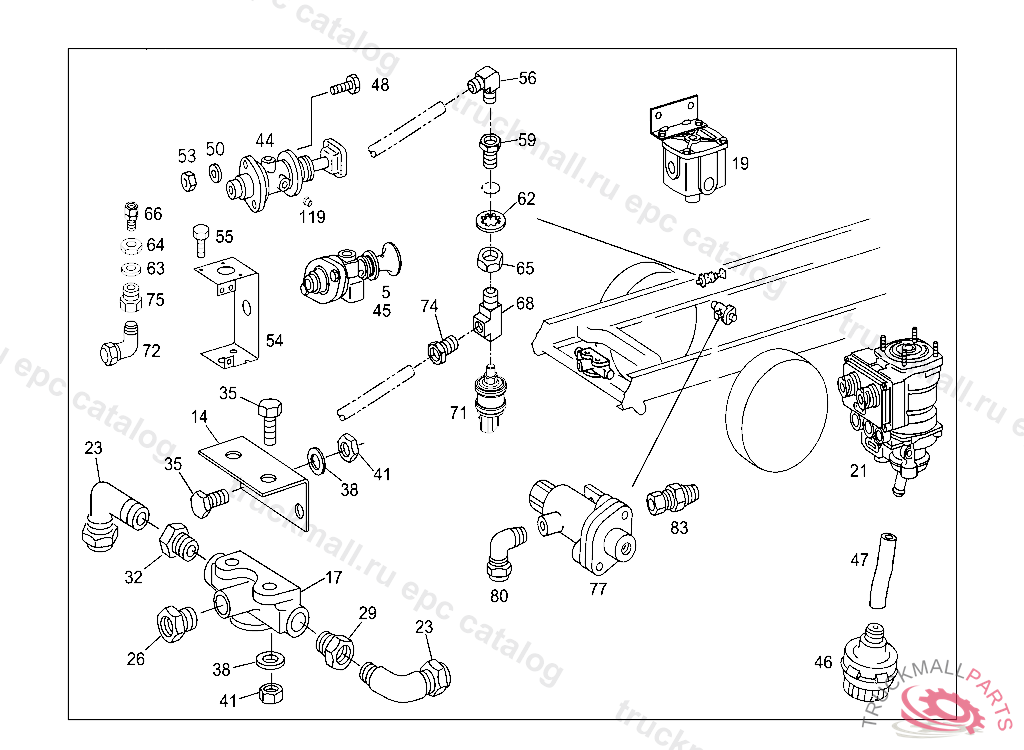

Поз.
Артикул
Описание
14
MOUNTING BRACKET TWO-WAY VALVE
17
VALVE QUICK-RELEASE VALVE
23
ELBOW FITTING
32
FITTING HOSE TO VALVE 3/8 NPTFM X 1/2 T
35
PART NAME MISSING SCREW
38
WASHER VALVE TO BRACKET 5/16-.640
41
PART NAME MISSING NUT
44
VALVE (HAND BRAKE VALVE)
48
SCREW CABLE MOUNTING 1/4-20
50
WASHER HAND BRAKE VALVE 1/4
59
FITTING HAND BRAKE VALVE
62
LOCK WASHER HAND BRAKE VALVE
63
WASHER
64
NUT1-14
65
NUT HAND BRAKE VALVE
66
PLUG REGENERATION TANK BR 0,6MPT
68
ELBOW FITTING , TO BE ORDERED ONLY FROM MBMEX
71
SENDER UNIT66 PSI(4.55BAR) 1/8 - 27 NPT
72
ELBOW FITTING
74
FITTING , TO BE ORDERED ONLY FROM MBMEX
75
FITTING3/8 NPT
119
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
999
CONNECTOR ON AIR DRIER
999
FITTING AT AIR RESERVOIR
999
T-FITTING AT AIR RESERVOIR
999
FASTENER3/8-18 NPTF
999
LOOM TIE
