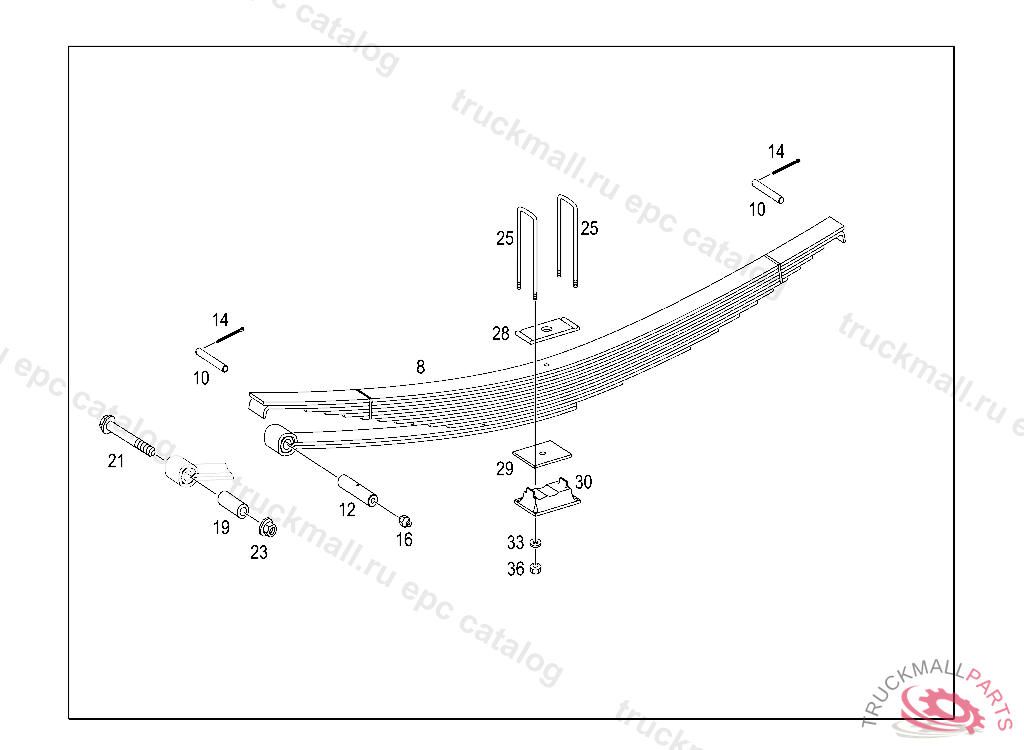

Поз.
Артикул
Описание
8
REAR SPRING
12
SHACKLE PIN
16
GREASE NIPPLE SHACKLE PIN
16
GREASE NIPPLE , Replaced By: HLM6859970488
25
CLAMP REAR SPRING, Replaced By: A6853221025
25
CLAMP REAR SPRING
28
SPACER REAR SPRING
29
PLATE REAR SPRING
30
PAD REAR SPRING
33
WASHER SHIM TO AXLE 3/4
36
NUT SHIM TO AXLE 3/4-16
999
BRACKET LEFT REAR SPRING LOAD ACCUMULATOR
999
BRACKET RIGHT REAR SPRING LOAD ACCUMULATOR
999
BRACKET LEFT SHOCK ABSORBER, Replaced By: QT16-13851-000
999
BRACKET RIGHT SHOCK ABSORBER, Replaced By: QT16-13851-001
