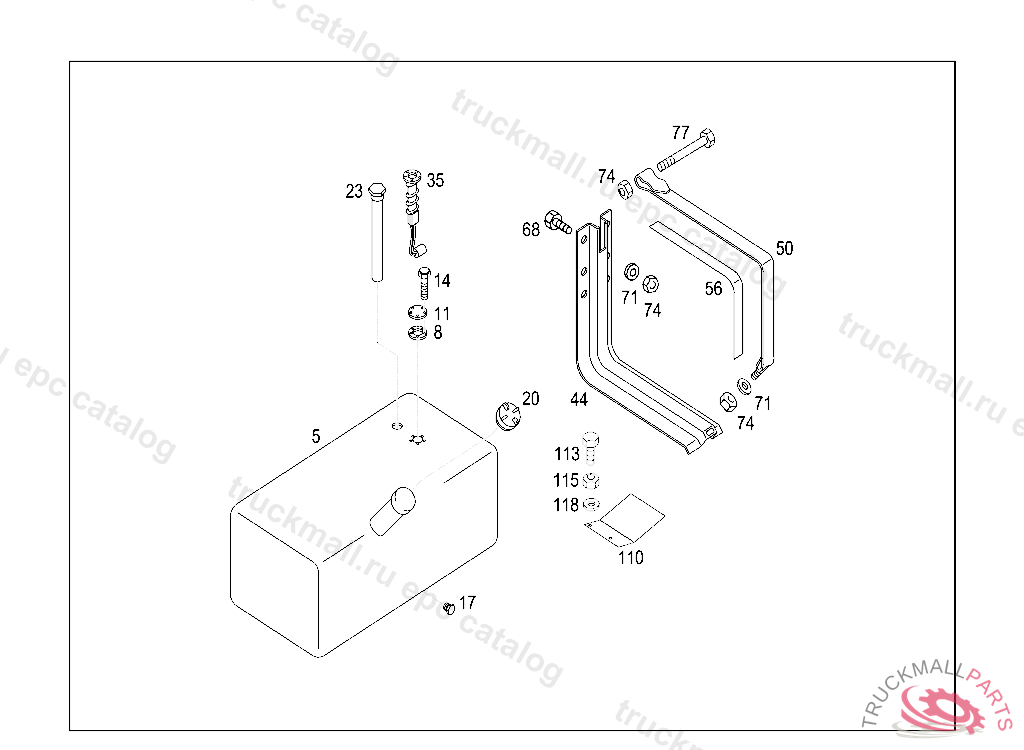

Поз.
Артикул
Описание
5
FUEL TANK , Replaced By: A6854700201
5
FUEL TANK54 GL,M 038203
5
FUEL TANK54 GAL
5
FUEL TANK204 L,M 038204
5
FUEL TANK 260L
8
GASKET
11
COVERING
14
SCREW10-32
20
FILLER CAP , Replaced By: QT03-33903-001
20
FILLER CAP , Replaced By: QT03-33903-001
20
FILLER CAP
23
SUCTION LINE
35
SENDER UNIT
44
BRACKET , Replaced By: A6854750401
44
BEAM
50
BRACKET
56
LEDGE
68
PART NAME MISSING1/2-13
68
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
71
PART NAME MISSING CONSOLE TO FRAME 1/2
74
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
110
HEAT SHIELD STONE SHIELD, LEFT
110
COVERING
113
PART NAME MISSING SCREW
115
NUT. PART NAME MISSING NUT
118
WASHER 3/8
999
ANGLE STRAP
999
CLAMPING SCREW STRAP
999
STRAP STRAP
999
PROTECTIVE STRIP
