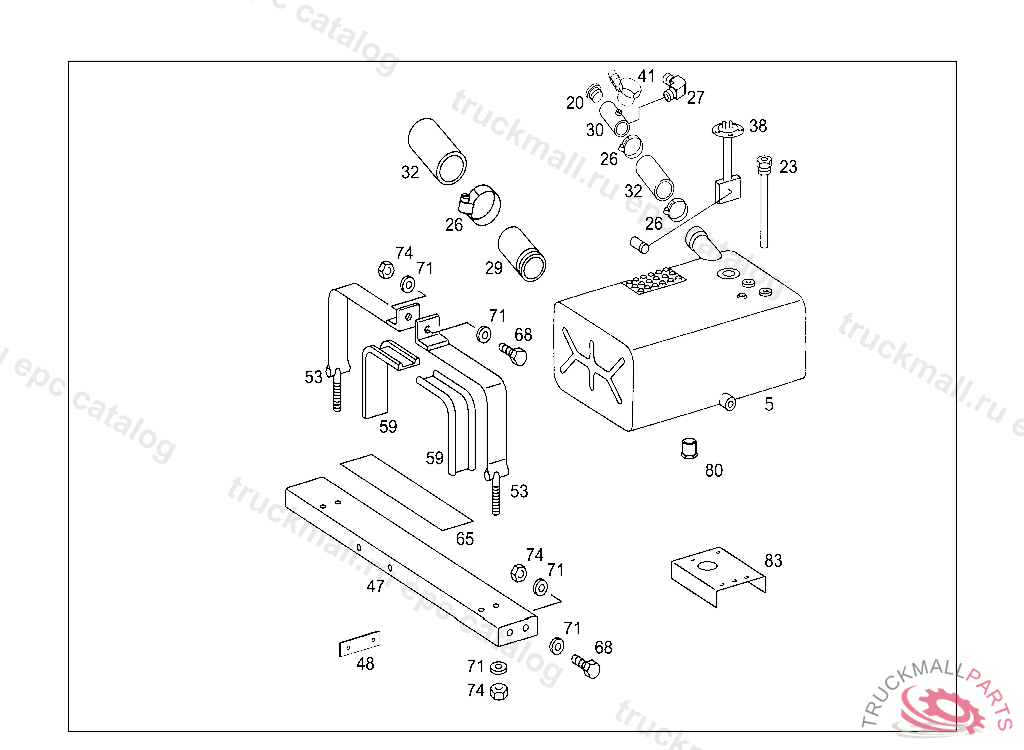

Поз.
Артикул
Описание
5
FUEL TANK54 GAL
5
FUEL TANK 260L
5
FUEL TANK204 L,M 038204
5
FUEL TANK , Replaced By: A6854700201
5
FUEL TANK54 GL,M 038203
20
FILLER CAP , Replaced By: QT03-33903-001
20
FILLER CAP , Replaced By: QT03-33903-001
20
FILLER CAP
23
SUCTION LINE
26
CLAMP
27
ELBOW FITTING90GR 12NYLX12MPT
30
FILLER NECK
30
HOSE , Replaced By: A6854700020
32
HOSE
41
CHECK VALVE (RELIEF VALVE)
47
BRACKET
53
STRAP
59
LEDGE
65
LEDGE
68
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
68
PART NAME MISSING1/2-13
71
PART NAME MISSING CONSOLE TO FRAME 1/2
74
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
ANGLE STRAP
999
CLAMPING SCREW STRAP
999
STRAP STRAP
999
PROTECTIVE STRIP
