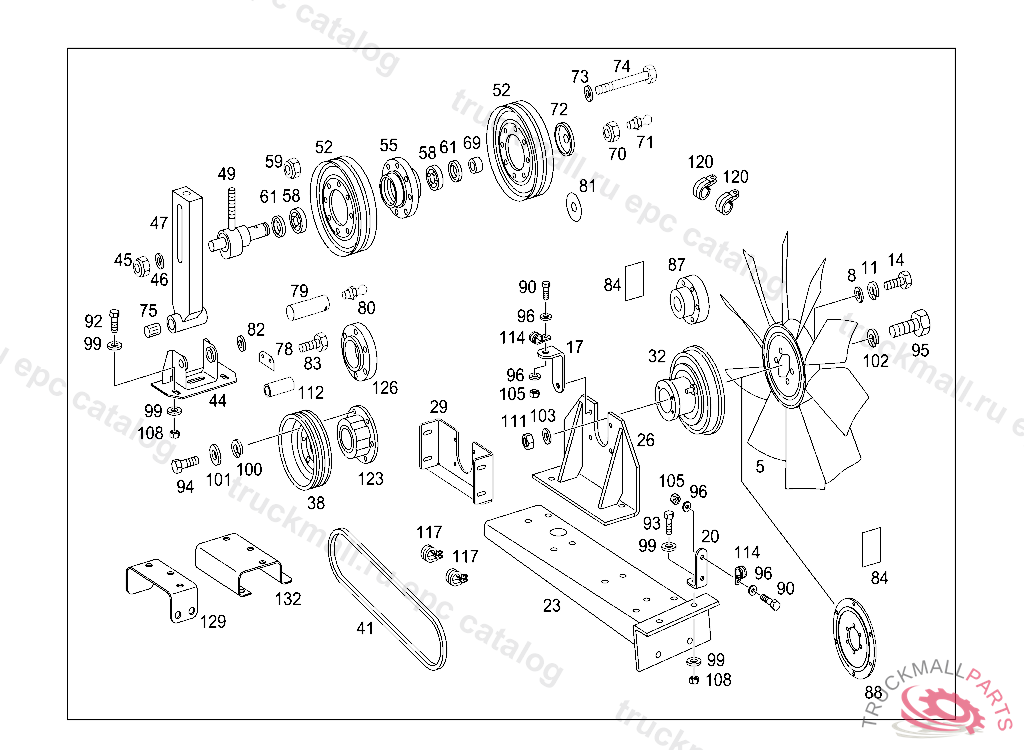

Поз.
Артикул
Описание
5
FAN
5
FAN"KYSOR CADILLAC"
8
WASHER SHIFTING ROD 3/8
8
WASHER VALVE TO BRACKET 5/16-.640
11
SPRING WASHER 3/8
14
SCREW3/8-16
14
PART NAME MISSING SCREW
17
BRACKET
20
BRACKET LINE MOUNTING
23
SUPPORT VENTILATOR
26
BRACKET FAN COUPLING
29
SUPPORTING PLATE FAN COUPLING
32
COUPLING FAN COUPLING 12V
32
COUPLING FAN COUPLING 12V
32
COUPLING FAN COUPLING
38
PULLEY
38
PULLEY
38
PULLEY
41
V-BELT1420 MM
41
V-BELT1625MM
41
V-BELT SET2 PIECES 12.5X1775
41
V-BELT1219 MM
41
V-BELT1445 MM
41
V-BELT , Replaced By: A0069972092
44
BEARING BRACKET PULLEY
45
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
46
WASHER , Replaced By: N000125017016
47
SUPPORT (TIGHTENER ARM)
49
LEVER BELT TIGHTENER PULLEY
52
PULLEY BELT TIGHTENER PULLEY
55
HUB BELT TIGHTENER PULLEY
58
BALL BEARING BELT TIGHTENER PULLEY
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
61
SEAL RING BELT TIGHTENER PULLEY
69
SPACER TUBE BELT TIGHTENER PULLEY
70
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
71
GREASE NIPPLE INTERMEDIATE LEVER
72
EXPANSION PLUG BELT TIGHTENER PULLEY
73
WASHER , Replaced By: N000125008443
74
SCREW PLUG SOCKET TO FRAME
75
NEEDLE BEARING (TIGHTENER ARM)
78
LOCK
80
GREASE NIPPLE
81
LOCK BELT TIGHTENER PULLEY
82
WASHER (TIGHTENER ARM)
83
SCREW CONNECTOR TO CAB M6X8
84
TYPE DESIGNATION
87
SPACER RING
88
SPACER RING
90
SCREW CABLE MOUNTING 1/4-20
92
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
93
SCREW3/8
93
SCREW AT SHIFTING ROD 3/8-16
93
PART NAME MISSING. SCREW3/8-16
94
SCREW CROSS MEMBER TO SIDE MEMBERS
94
SCREW ANGLE TO CROSS MEMBER M 10X30
95
PART NAME MISSING SCREW
95
SCREW3/8-16
96
WASHER HAND BRAKE VALVE 1/4
99
WASHER
99
PART NAME MISSING CONSOLE TO FRAME 1/2
100
LOCK WASHER , Replaced By: N912004010102
101
WASHER10
102
SPRING WASHER 3/8
103
WASHER SHIFTING ROD 3/8
105
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
108
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
111
NUT BRACKET TO SIDE MEMBER,XB209706
111
PART NAME MISSING NUT
111
NUT. PART NAME MISSING NUT
114
CLAMP
117
CLAMP0.250
117
CLAMP CABLE HARNESS TO SUPPORT
117
CLAMP , Replaced By: QT01-27263-000
117
CLAMP ,M 026117
120
LOOM TIE
120
LOOM TIE BRAKE HOSE FIXTURE
120
CLAMP. LOOM TIE
123
INTERMEDIATE PIECE
