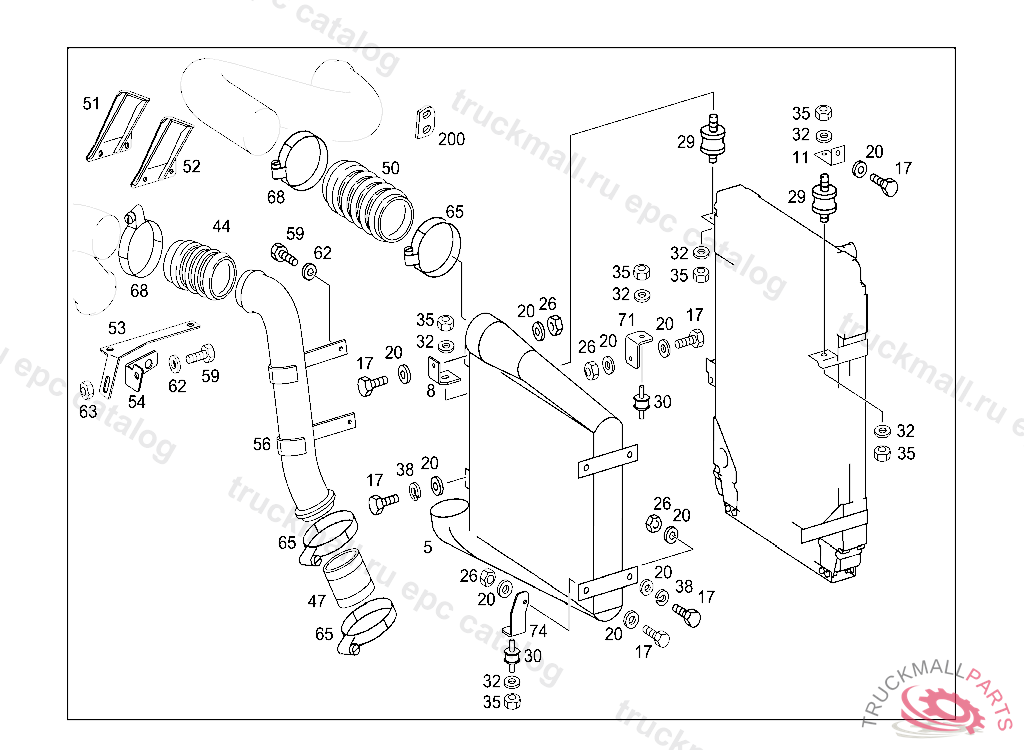

Поз.
Артикул
Описание
5
RADIATOR
8
BRACKET
8
BRACKET , Replaced By: A6855017820
8
BRACKET
11
BRACKET
17
SCREW BRACKET TO STRUT 5/16-18
17
PART NAME MISSING SCREW
20
WASHER VALVE TO BRACKET 5/16-.640
20
WASHER 3/8
26
PART NAME MISSING NUT
29
RUBBER BUFFER RADIATOR MOUNTING,TOP M10X50X30
30
BEARING
32
WASHER10
35
NUT BRACKET TO RETARDER
35
NUT , Replaced By: N000934010005
38
LOCK WASHER5/16
38
LOCK WASHER , Replaced By: N912004010102
44
HOSE
44
HOSE CHARGE AIR INTERCOOLER
47
HOSE AIR INTAKE PIPE TO ENGINE
50
HOSE
56
LINE , Replaced By: QTA01-27841-000
56
CHARGING AIR LINE
59
PART NAME MISSING SCREW
62
WASHER VALVE TO BRACKET 5/16-.640
65
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
65
CLAMP87-112MM
68
CLAMP68-85MM
68
LOOM TIE. CLAMP HOSE TO RADIATOR AND TO ENGINE
71
BRACKET
74
BRACKET
200
BRACKET
