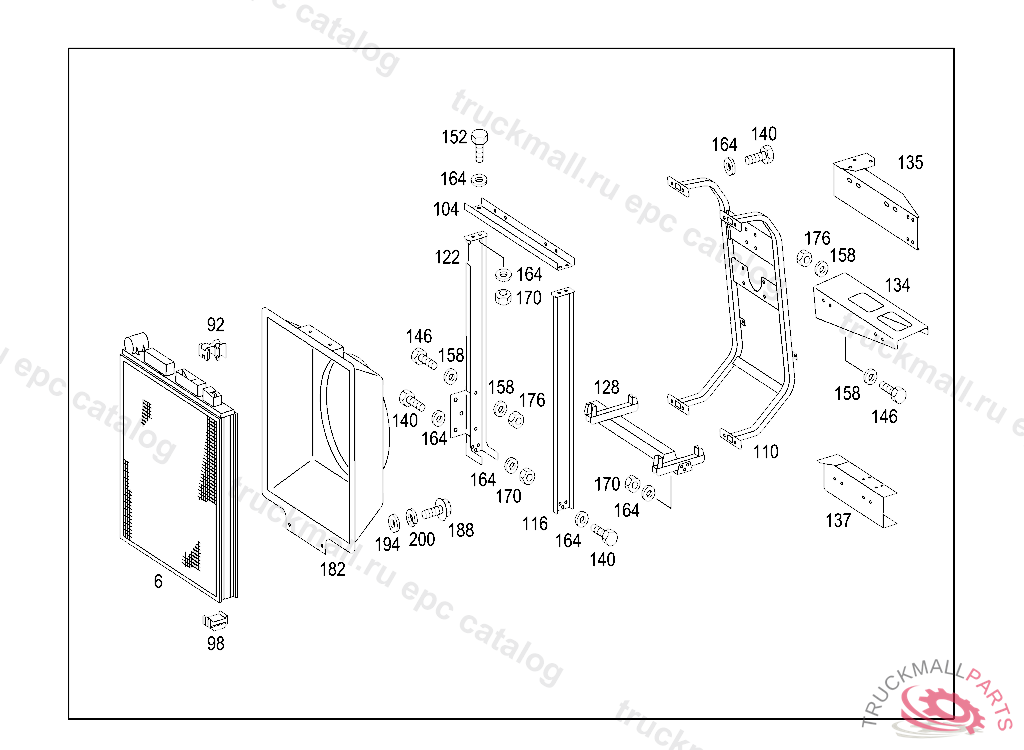

Поз.
Артикул
Описание
6
RADIATOR WATER
92
RUBBER MOUNTING ON RADIATOR,TOP
98
RUBBER MOUNTING RADIATOR BOTTOM
104
SUPPORT RADIATOR MOUNTING OBEN
110
BRACKET RADIATOR MOUNTING
116
BRACKET RADIATOR MOUNTING
122
BRACKET RADIATOR MOUNTING
128
SUPPORT RADIATOR MOUNTING UNTEN
135
SUPPORT RADIATOR MOUNTING
140
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
146
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
152
SCREW AT SHIFTING ROD 3/8-16
158
WASHER HAND BRAKE VALVE 1/4
164
WASHER SHIFTING ROD 3/8
164
PART NAME MISSING CONSOLE TO FRAME 1/2
170
NUT. PART NAME MISSING NUT
170
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
176
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
182
FAN SHROUD
188
SCREW , Replaced By: N910143008002
194
WASHER TRAILER PLUG SOCKET TO BRACKET
194
WASHER
200
LOCK WASHER TAIL LAMP TO BRACKET
