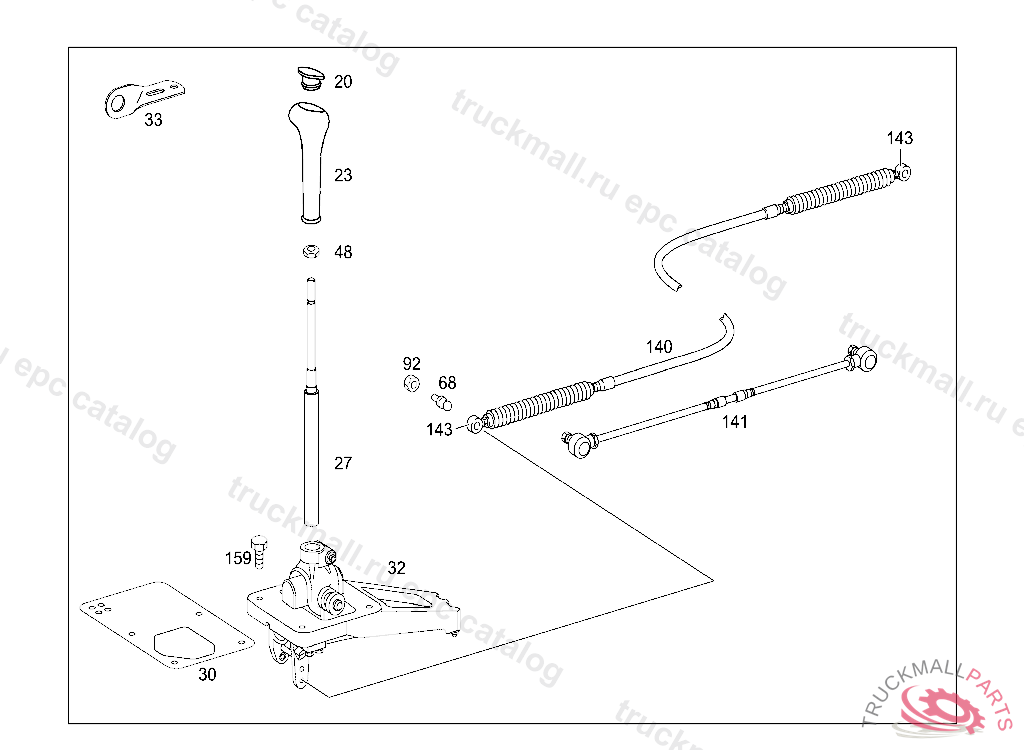

Поз.
Артикул
Описание
20
COVER 6-SPEED,SHIFT LEVER KNOB
23
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
27
SHIFT LEVER ,M 005046
27
SHIFT LEVER
32
HOUSING F MANUAL TRS. (SHIFT CASE)
32
HOUSING (SHIFT CASE)
48
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
68
BALL PIVOT. PIN FOR SHIFTING CABLE
68
BALL PIVOT , Replaced By: N071803013102
68
BALL PIVOT
92
NUTM8X1,25
140
WIRE CABLE9150MM
141
CABLE 8930MM
141
CABLE 9060MM
143
BALL JOINT
159
SCREW , Replaced By: N910143008002
159
SCREW
999
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
NUT. PART NAME MISSING NUT
999
PART NAME MISSING1/2-13
999
PART NAME MISSING1/2-13
999
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
999
PART NAME MISSING SCREW
999
PART NAME MISSING , Replaced By: A6889900001
999
PART NAME MISSING CONSOLE TO FRAME 1/2
999
PART NAME MISSING CONSOLE TO FRAME 7/16
999
LOOM TIE
999
SCREW3/8-16
999
SCREW STEERING SHAFT TO STEERING 3/8-16
999
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
999
SCREW3/8
999
SCREW5/16-18
999
SCREW BRACKET TO STRUT 5/16-18
999
SCREW1/4-20
999
WASHER1/4
999
SPRING WASHER 3/8
999
BRACKET
999
BRACKET
999
BRACKET ,M 026117
999
CLAMP
999
PLATE
999
BRACKET
999
NUT , Replaced By: N913023010002
999
SCREW , Replaced By: A0009903204
999
LOCK WASHER , Replaced By: N912004010102
999
WASHER GROUND CABLE
999
WASHER PLUG SOCKET TO BRACKET
