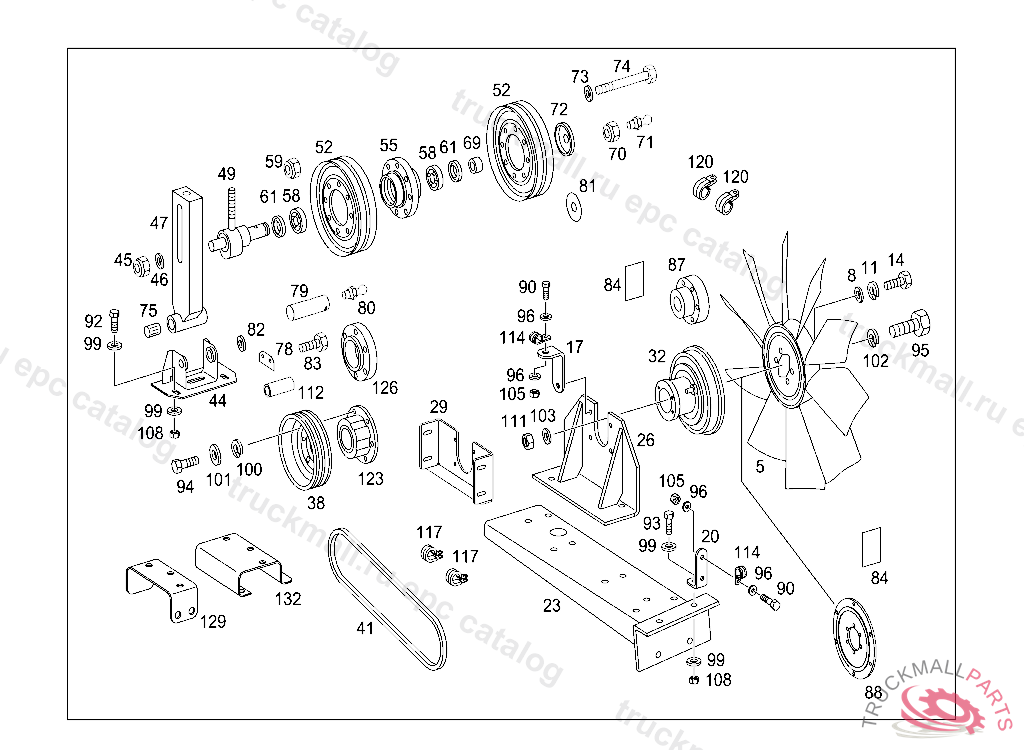

Поз.
Артикул
Описание
5
FAN
8
WASHER SHIFTING ROD 3/8
8
WASHER VALVE TO BRACKET 5/16-.640
11
SPRING WASHER 3/8
14
PART NAME MISSING SCREW
29
SUPPORTING PLATE FAN COUPLING
32
COUPLING FAN COUPLING 12V
38
PULLEY
38
PULLEY
38
PULLEY
38
PULLEY
41
V-BELT1699MM
41
V-BELT1625MM
41
V-BELT1270 MM,M 026123
41
V-BELT1445 MM
41
V-BELT1219 MM
44
BEARING BRACKET PULLEY
47
SUPPORT (TIGHTENER ARM)
49
LEVER BELT TIGHTENER PULLEY
52
PULLEY BELT TIGHTENER PULLEY
55
HUB BELT TIGHTENER PULLEY
58
BALL BEARING BELT TIGHTENER PULLEY
61
SEAL RING BELT TIGHTENER PULLEY
69
SPACER TUBE BELT TIGHTENER PULLEY
71
GREASE NIPPLE INTERMEDIATE LEVER
72
EXPANSION PLUG BELT TIGHTENER PULLEY
75
NEEDLE BEARING (TIGHTENER ARM)
78
LOCK
80
GREASE NIPPLE
81
LOCK BELT TIGHTENER PULLEY
82
WASHER (TIGHTENER ARM)
84
TYPE DESIGNATION
88
SPACER RING
92
SCREW AT SHIFTING ROD 3/8-16
93
SCREW3/8
93
SCREW AT SHIFTING ROD 3/8-16
94
SCREW3/8
94
SCREW CROSS MEMBER TO SIDE MEMBERS
94
SCREW ANGLE TO CROSS MEMBER M 10X30
95
PART NAME MISSING SCREW
95
PART NAME MISSING SCREW
99
WASHER SHIFTING ROD 3/8
99
WASHER
100
SPRING WASHER 3/8
100
LOCK WASHER , Replaced By: N912004010102
101
WASHER10
101
WASHER SHIFTING ROD 3/8
102
WASHER VALVE TO BRACKET 5/16-.640
102
SPRING WASHER 3/8
103
WASHER SHIFTING ROD 3/8
108
NUT. PART NAME MISSING NUT
111
NUT. PART NAME MISSING NUT
111
NUT BRACKET TO SIDE MEMBER,XB209706
111
PART NAME MISSING NUT
123
INTERMEDIATE PIECE
