Главная
›
Mercedes
›
BUS
›
OMC 1623/51, 1626/51
›
685.561
›
50 RADIATOR
›

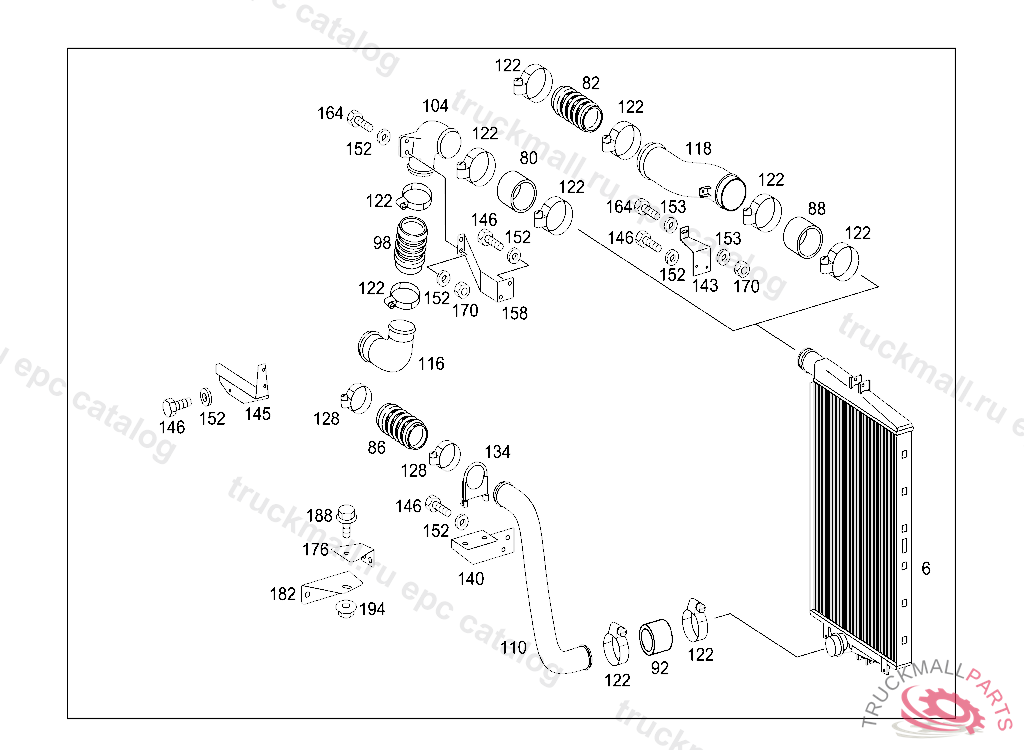

510 CHARGE AIR INTERCOOLER IL. 2
Mercedes A6855287782 -
OMC 1623/51, 1626/51 685.561
50 RADIATOR - 510 CHARGE AIR INTERCOOLER IL. 2
Поз.
Артикул
Описание
6
A3685010201
RADIATOR CHARGE AIR INTERCOOLING
82
A9060940682
HOSE
86
A6855287782
HOSE
88
A9040941182
HOSE
92
A9060940982
HOSE BOTTOM
110
A6855281808
AIR INTAKE PIPE
110
A6855282308
AIR INTAKE PIPE
118
A6855203101
AIR INTAKE PIPE
122
A6859950210
CLAMP
128
A6859950110
CLAMP68-85MM
134
A6859950042
CLAMP
143
A6855211540
BRACKET
145
A6855210440
BRACKET ,M 033720
145
A6855210040
BRACKET BOTTOM
146
QT2309436125
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
152
QT2309114002
WASHER SHIFTING ROD 3/8
153
QT2300600031
PART NAME MISSING , Replaced By: A6889900040
164
QT2309434125
SCREW BRACKET TO STRUT 5/16-18
170
QT2309901106
NUT. PART NAME MISSING NUT
