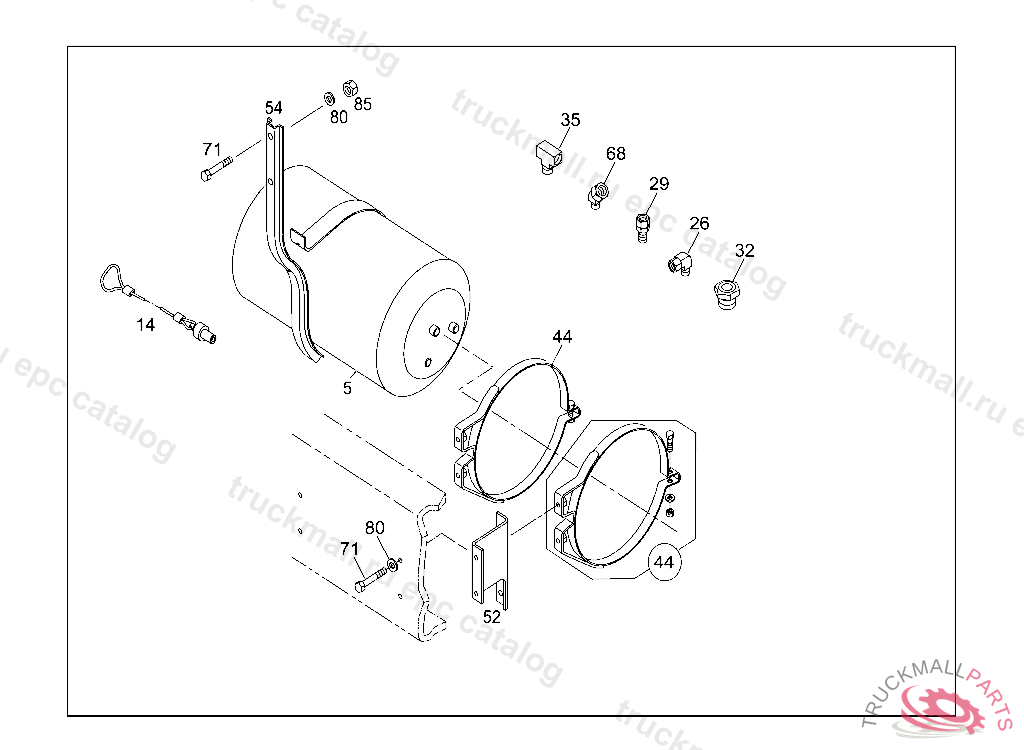

Поз.
Артикул
Описание
5
RESERVOIR AIR RESERVOIR 28.5 L
5
RESERVOIR AIR RESERVOIR, Replaced By: A6854300203
5
RESERVOIR AIR RESERVOIR4.5 LTS 276X1100MM
14
VALVE DRAIN VALVE
14
VALVE DRAIN VALVE
26
ELBOW FITTING REGENERATION TANK
26
ELBOW FITTING AT AIR RESERVOIR
29
FITTING AT AIR RESERVOIR
32
FITTING HOSE TO VALVE 3/8 NPTFM X 1/2 T
32
FITTING AT AIR RESERVOIR
32
FITTING AT AIR RESERVOIR
32
FITTING AT AIR RESERVOIR
35
T-FITTING
35
T-FITTING AT AIR RESERVOIR
44
BRACKET AIR RESERVOIR
52
BRACKET RIGHT AIR RESERVOIR
52
BRACKET LEFT AIR RESERVOIR
68
ELBOW FITTING45GR. NPTFM X 5/8T
71
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
80
WASHER SHIFTING ROD 3/8
85
NUT. PART NAME MISSING NUT
999
FITTING AT AIR RESERVOIR, Replaced By: N210500000011
999
PLUG OIL PRESSURE GAUGE
999
PLUG REGENERATION TANK BR 0,6MPT
999
PART NAME MISSING SCREW
999
VALVE PRESSURE CONTROL VALVE
