Поз.
Артикул
Описание
6

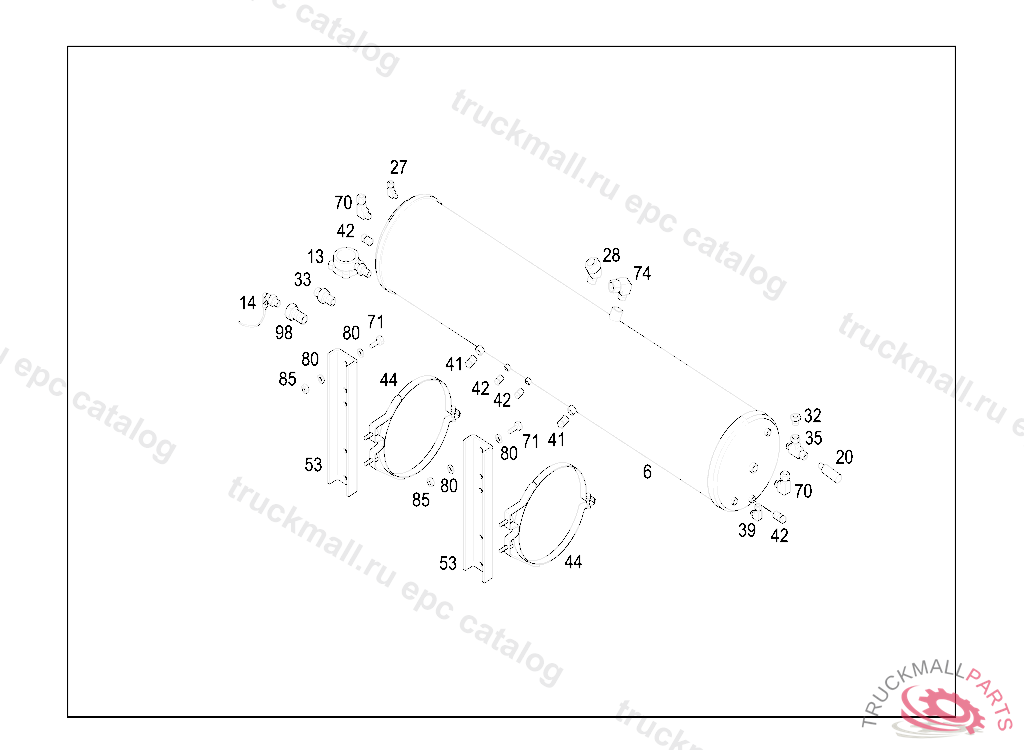

RESERVOIR AIR RESERVOIR
13
VALVE AUTOMATIC DRAIN VALVE CONNECTION BW 101321
14
VALVE DRAIN VALVE
14
VALVE DRAIN VALVE
20
VALVE AT AIR RESERVOIR
27
ELBOW FITTING
32
FITTING AT AIR RESERVOIR
32
FITTING AT AIR RESERVOIR
32
FITTING AT AIR RESERVOIR
32
FITTING HOSE TO VALVE 3/8 NPTFM X 1/2 T
33
FITTING AT AIR RESERVOIR
35
T-FITTING AT AIR RESERVOIR
35
T-FITTING
39
DRAIN COCK
41
PLUG AT AIR RESERVOIR
42
FASTENER3/8-18 NPTF
44
BRACKET AIR RESERVOIR
53
BRACKET AIR RESERVOIR
70
ELBOW FITTING90GR. 1/2NPTFX5/8T
71
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
74
ELBOW FITTING BRAKE VALVE 90GR 3/8NPT
80
WASHER SHIFTING ROD 3/8
85
NUT. PART NAME MISSING NUT
999
FITTING AT AIR RESERVOIR, Replaced By: N210500000011
999
FITTING AT AIR RESERVOIR
999
PLUG OIL PRESSURE GAUGE
999
PLUG REGENERATION TANK BR 0,6MPT
999
PART NAME MISSING SCREW
999
VALVE PRESSURE CONTROL VALVE
