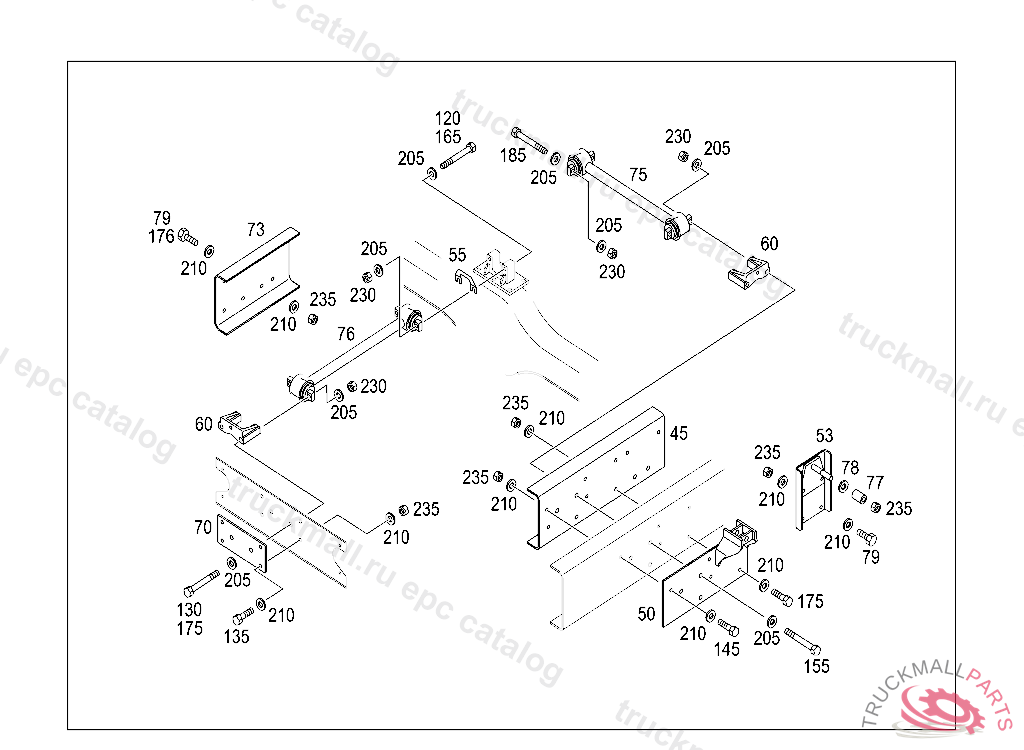

OMC 1623/51, 1626/51 - 685.561 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
53
BRACKET SHOCK ABSORBER
55
BRACKET LINK
60
TRUSS LEFT
60
SHIM
70
TRUSS
73
TRUSS RIGHT
75
LINK
76
TORSION BAR
77
SPACER TUBE
78
THRUST WASHER3/4
79
PART NAME MISSING1/2-13
120
SCREW5/8-11
130
STUD5/8-11
135
SCREW SUPPORT TO ALTERNATOR 1/2-13
175
SCREW1/2-13, NOT USED
175
PART NAME MISSING1/2-13
185
SCREW5/8-11
210
PART NAME MISSING CONSOLE TO FRAME 1/2
230
NUT5/8-11,M 026123
235
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
999
PLATE
