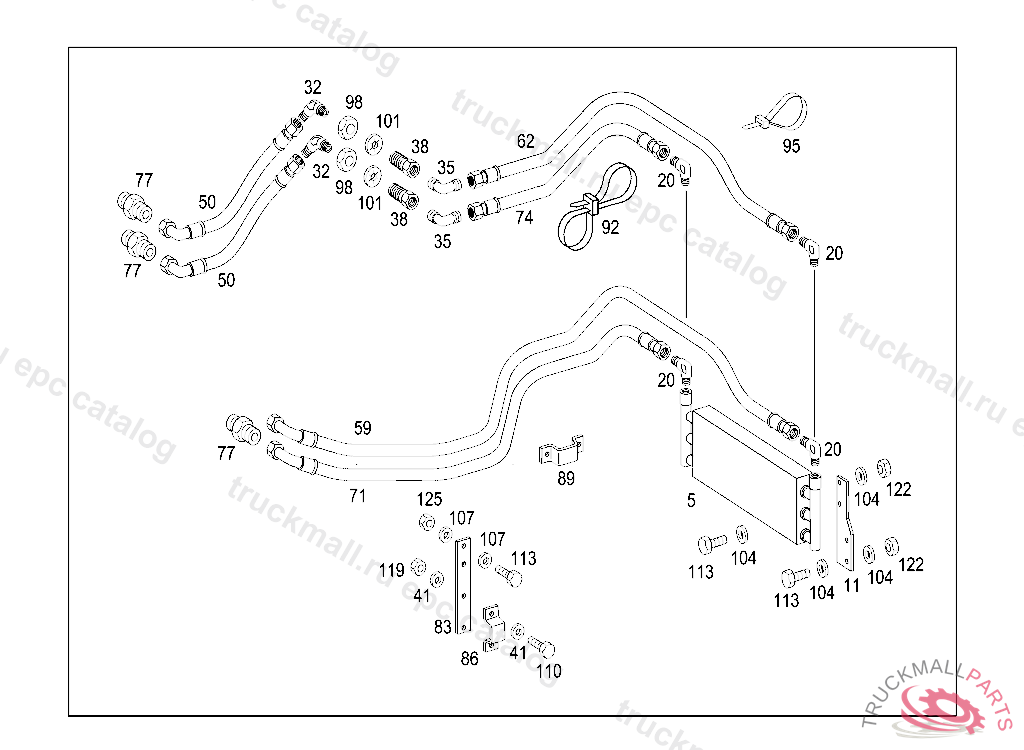

OMC 1623/51, 1626/51 - 685.561 - 26 TRANSMISSION
Поз.
Артикул
Описание
5
OIL COOLER
11
BRACKET OIL COOLER
20
ELBOW FITTING OIL COOLER
32
ELBOW OIL COOLER 45 GRAD
41
WASHER HAND BRAKE VALVE 1/4
59
PIPE OIL COOLER
71
PIPE OIL COOLER
77
F-FITTING OIL COOLER
83
BRACKET TO OIL LINE
86
BRACKET TO OIL LINE
89
BRACKET TO OIL LINE
92
LOOM TIE
104
PART NAME MISSING , Replaced By: A6889900040
107
WASHER BRACKET MOUNTING 3/8
113
SCREW BRACKET TO STRUT 5/16-18
113
SCREW AIR RESERVOIR BRACKET TO FRAME 3/8-16X1/4 FG 8
119
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
122
PART NAME MISSING NUT
125
NUT. PART NAME MISSING NUT
