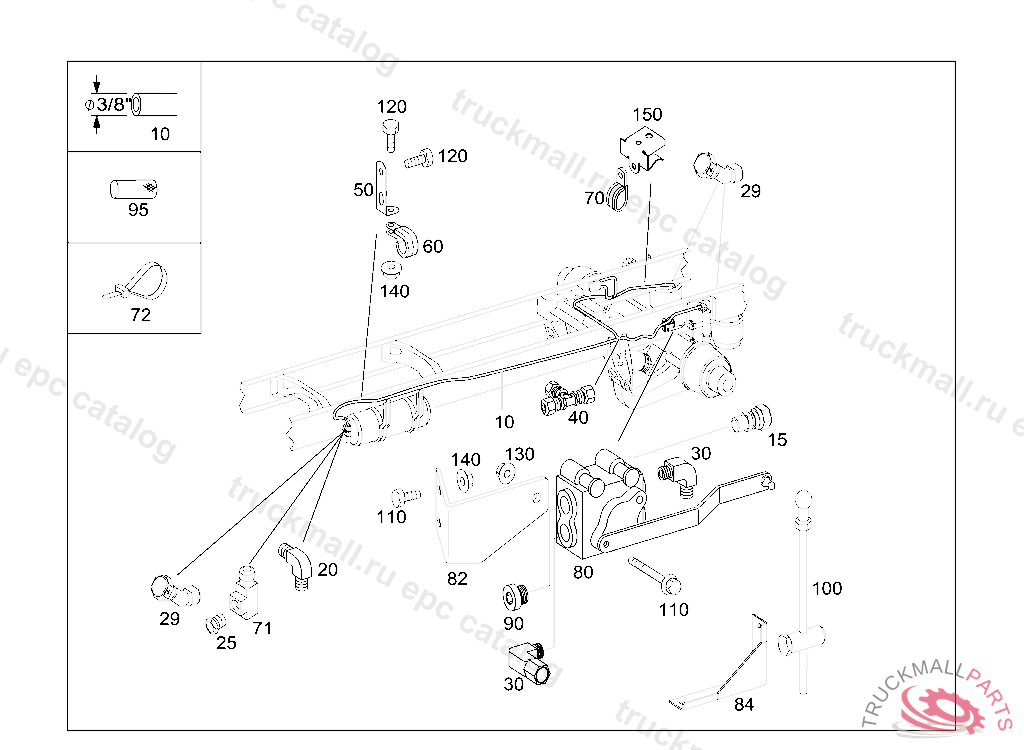

OMC 1623/51, 1626/51 - 685.561 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
10
PLASTIC PIPE BLUE 3/8, ORDER BY THE METER
15
FITTING
25
ELBOW FITTING BRAKE VALVE 3/8 NPTFM X 1/4 NPTFH
29
ELBOW FITTING45 GR. 1/4 NPTFM X 3/8 T
30
ELBOW FITTING90 GR. 1/4 NPTFM X 3/8T
71
T-FITTING ,M 009558
72
STRAP TO HOSE
80
VALVEWABCO
82
BRACKET VALVE
84
BRACKET
90
PLUG OIL PRESSURE GAUGE
95
INSULATING HOSE
100
CONNECTOR
110
SCREW5/16-18
110
PART NAME MISSING SCREW
130
PART NAME MISSING NUT
140
PART NAME MISSING NUT3/8" - 16
