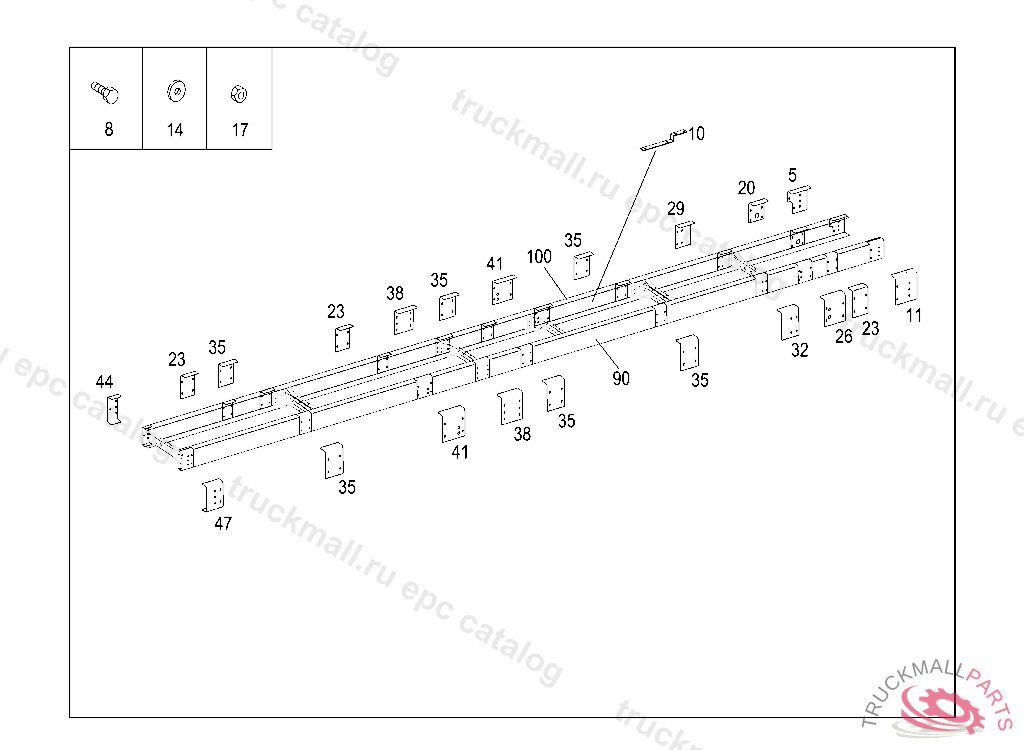

OMC 1623/51, 1626/51 - 685.561 - 31 FRAME
Поз.
Артикул
Описание
8
STUD3/4-10X2,75
8
STUD5/8-11
8
SCREW5/8-11, Replaced By: QT23-09444-225
8
STUD FRONT SPRING REAR BRACKET TO SIDE MEMBER 5/8-11
8
STUD5/8-11,M 026123
8
SCREW SUPPORT TO ALTERNATOR 1/2-13
8
PART NAME MISSING1/2-13
8
PART NAME MISSING1/2-13
14
WASHER5/8-1.312-.149 Z
14
PART NAME MISSING CONSOLE TO FRAME 1/2
17
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
17
NUT5/8-11,M 026123
90
SIDE MEMBER LEFTL 10555 MM
90
SIDE MEMBER LEFT
100
SIDE MEMBER RIGHT L 10555 MM
100
SIDE MEMBER RIGHT L 10680 MM
