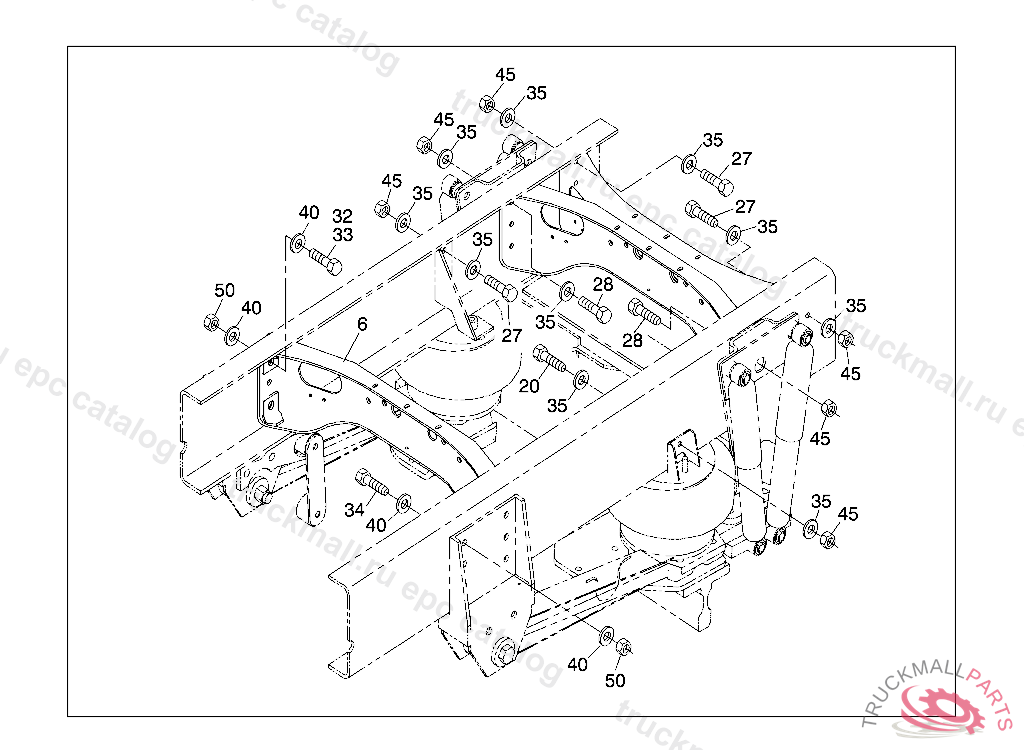

OMC 1623/51, 1626/51 - 685.561 - 31 FRAME
Поз.
Артикул
Описание
6
CROSS MEMBER REAR CROSS MEMBER
6
CROSS MEMBER ENGINE SUPPORT TO SIDE MEMBERS
20
PART NAME MISSING1/2-13
27
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
28
PART NAME MISSING1/2-13
32
STUD5/8-11,M 026123
33
STUD FRONT SPRING REAR BRACKET TO SIDE MEMBER 5/8-11
34
SCREW BUFFER TO FRAME 5/8-11
35
PART NAME MISSING CONSOLE TO FRAME 1/2
40
WASHER5/8-1.312-.149 Z
45
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
50
NUT5/8-11,M 026123
