Главная
›
Mercedes
›
BUS
›
OMC 1626/58
›
685.563
›
50 RADIATOR
›
540 FAN DRIVE
Mercedes A3440350612 -

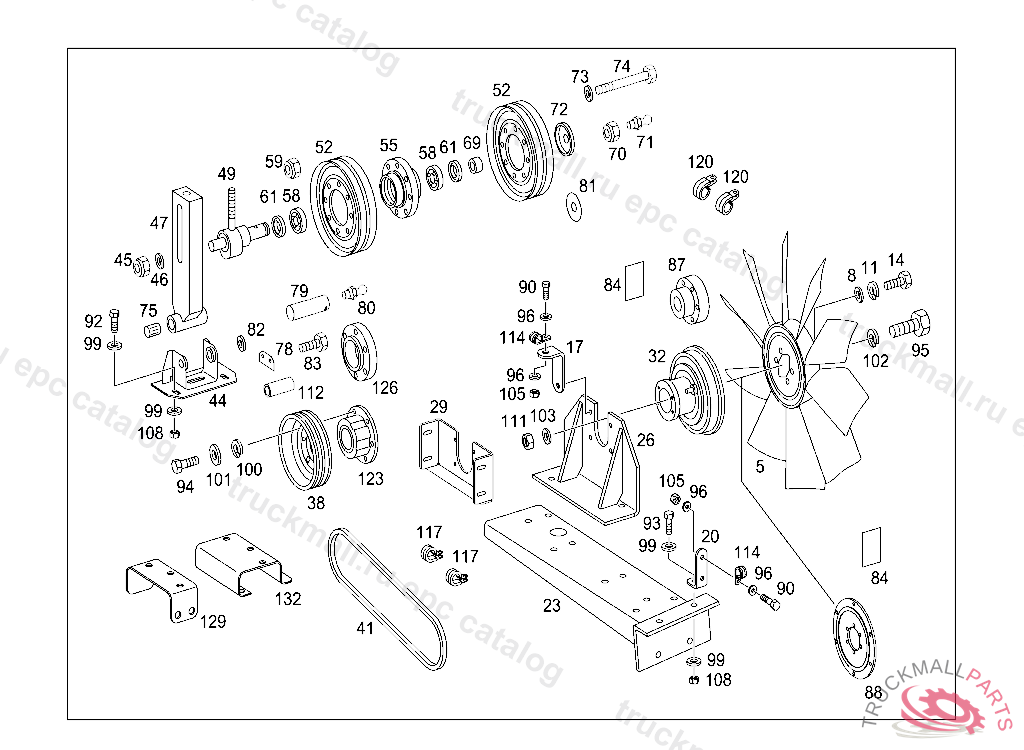

OMC 1626/58 685.563
50 RADIATOR - 540 FAN DRIVE
Поз.
Артикул
Описание
5
A4752050706
FAN
8
QT2309114006
WASHER VALVE TO BRACKET 5/16-.640
29
A6855041231
SUPPORTING PLATE FAN COUPLING
32
QT0128200000
COUPLING FAN COUPLING 12V
38
HLM6852050410
PULLEY
38
A9060350212
PULLEY
38
A3440350612
PULLEY
38
A9040350712
PULLEY
41
A6859930995
V-BELT1625MM
41
A9069935396
V-BELT1699MM
41
A6859931195
V-BELT1219 MM
41
A6859931395
V-BELT1270 MM,M 026123
84
HLM6858173014
TYPE DESIGNATION
88
A9060350051
SPACER RING
92
QT2309436175
SCREW AT SHIFTING ROD 3/8-16
94
QT2309436075
SCREW3/8
94
N000933010269
SCREW CROSS MEMBER TO SIDE MEMBERS
94
N000933010200
SCREW ANGLE TO CROSS MEMBER M 10X30
95
QT2309434100
PART NAME MISSING SCREW
95
QT2309436100
PART NAME MISSING SCREW
99
QT2309114002
WASHER SHIFTING ROD 3/8
99
QT2309114012
WASHER
100
QT2309318011
SPRING WASHER 3/8
100
N000127010202
LOCK WASHER , Replaced By: N912004010102
101
N221822010000
WASHER10
101
QT2309114002
WASHER SHIFTING ROD 3/8
102
QT2309114006
WASHER VALVE TO BRACKET 5/16-.640
102
QT2309318011
SPRING WASHER 3/8
103
QT2309114002
WASHER SHIFTING ROD 3/8
108
QT2309901106
NUT. PART NAME MISSING NUT
111
QT2309901105
PART NAME MISSING NUT
111
N913004010004
NUT BRACKET TO SIDE MEMBER,XB209706
123
HLM6852050608
INTERMEDIATE PIECE
