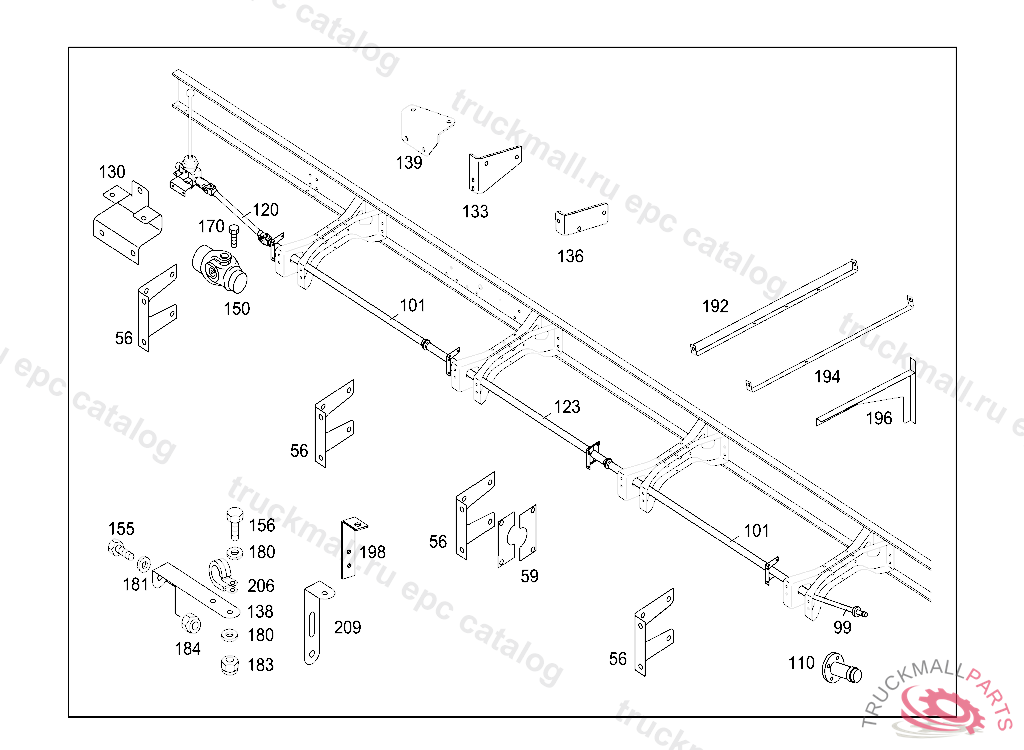

OMC 1626/58 - 685.563 - 26 TRANSMISSION

Поз.
Артикул
Описание
138
QT2309130020
BRACKET344X281
138
QT0609782000
BRACKET
139
QT0719842001
BRACKET
139
QT0719842000
BRACKET
155
QT2309434100
PART NAME MISSING SCREW
155
QT2309440100
SCREW1/2-13
156
QT2309432100
SCREW CABLE MOUNTING 1/4-20
170
N000933010263
SCREWM10X45MM
180
QT2300600025
WASHER HAND BRAKE VALVE 1/4
180
N000127010205
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
181
QT2309114006
WASHER VALVE TO BRACKET 5/16-.640
181
QT2309114003
PART NAME MISSING CONSOLE TO FRAME 1/2
183
QT2309901104
NUT COMPRESSED AIR LINE TO CROSS MEMBER1/4,M 033721
184
QT2309901108
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
184
QT2309901105
PART NAME MISSING NUT
196
A6852682140
BRACKET
198
QT1209768000
BRACKET OIL COOLER,M 005046
206
QT2311358024
CLAMP7/8
209
QT2309130002
BRACKET LINE MOUNTING
