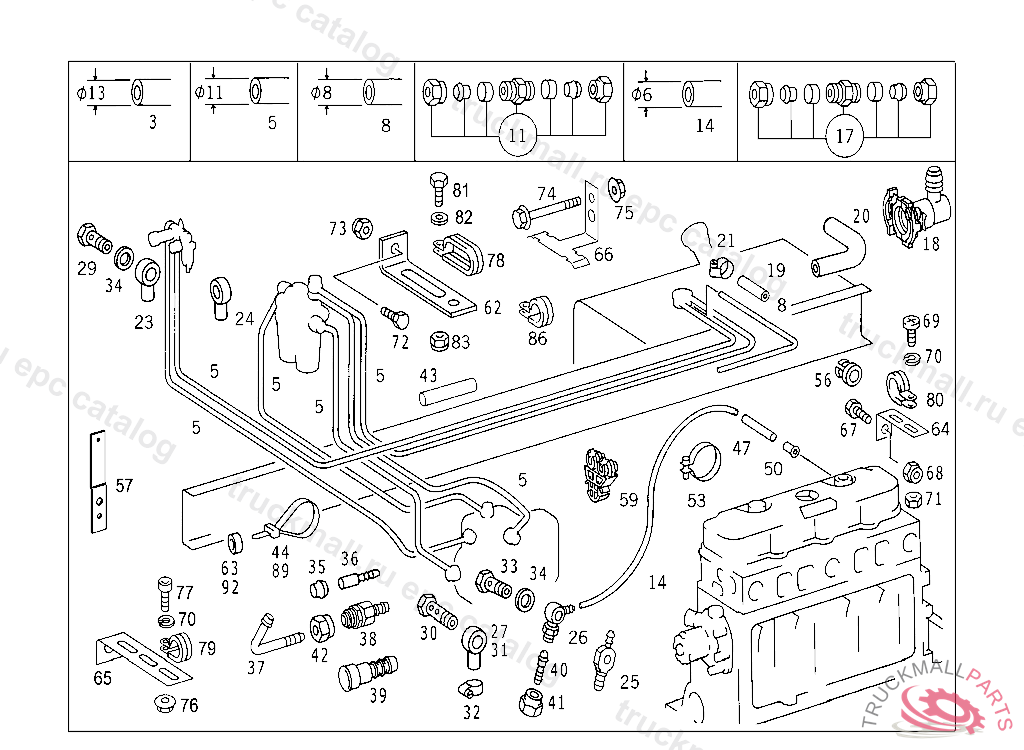

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
11
FITTING (PARTS KIT),LINE RUPTURE
14
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
17
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
19
HOSE FEED LINE AND RETURN LINE
21
CLAMP , Replaced By: N916017011001
23
BANJO UNION
24
BANJO UNION MANUAL PUMP,D 031294
25
BANJO UNION
25
BANJO UNION CONNECTION OF FUEL LINES
26
BANJO UNION RETURN LINE,D 031294
26
BANJO UNION RETURN LINE,D 031246
29
HOLLOW SCREW
33
HOLLOW SCREW
34
SEAL RING INJECTION PUMP
34
SEAL RING14X18
35
BALL-TYPE NIPPLE
36
FITTING
37
CONNECTOR
40
INTERMEDIATE PIECE CONNECTION OF FUEL LINES
41
NUT. UNION NUT RETURN
44
LOOM TIE ELECTRIC CABLE MOUNTING
47
HOSE , ORDER BY THE METER
47
HOSE , ORDER BY THE METER
50
SLEEVE LEAK LINE
53
CLAMP LINE MOUNTING
56
BUSHING FUEL LINE THRU FRAME SIDE MEMBER
59
BRACKET FEED LINE AND RETURN LINE TO SIDE MEMBER
62
BRACKET , Replaced By: A3464296040
62
BRACKET POS. CABLE,XB209706
72
SCREW BRACKET TO BUMPER,LEFT M 10X25
73
NUT BRACKET TO SIDE MEMBER,XB209706
78
CLAMP FUEL LINES TO BRACKET
80
CLAMP FRAME MOUNTED CABLE HARNESS TO CAB
81
SCREW CLAMP TO BRACKET
82
WASHER PLUG SOCKET TO BRACKET
83
NUT PUMP TO BRACKET
89
LOOM TIE LINE MOUNTING
89
CLAMP CHARGING AIR LINE TO TURBOCHARGER
89
LOOM TIE , Replaced By: A0029979790
92
WASHER BRACKET TO LEFT SIDE MEMBER
999
FUEL PUMP. AUXILIARY PUMP FUEL TANK,ELECTRIC FUEL PUMP,ELECTROHYDRAULIC SHUT-OFF DEVICE
