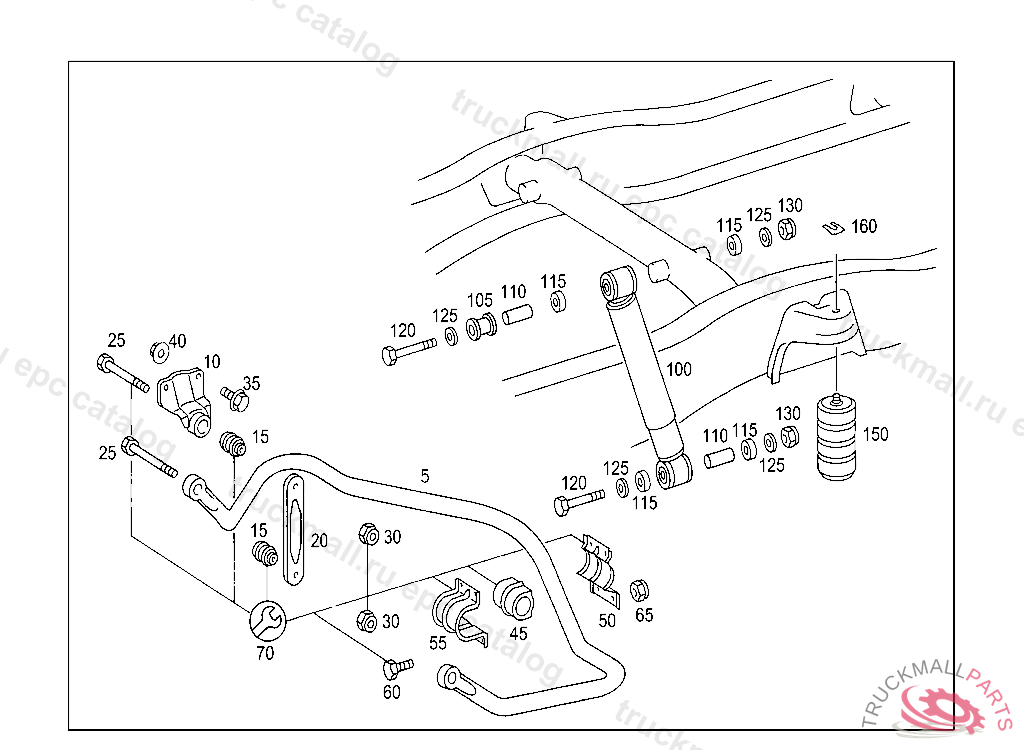

Поз.
Артикул
Описание
5
TORSION BAR O.D., 41 MM
10
CONSOLE RIGHT
10
CONSOLE LEFT
15
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
15
BEARING BRACKET TO SHACKLE
15
BEARING BRACKET TO SHACKLE
20
SHACKLE TORSION BAR TO CONSOLE
25
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
25
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
30
NUT BRACKET TO SIDE MEMBER M12X1.5
35
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
40
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
45
RUBBER MOUNTING I.D., 41 MM
50
INTERMEDIATE PIECE TORSION BAR TO REAR AXLE
55
BRACKET TORSION BAR TO REAR AXLE
60
SCREW , Replaced By: N910143008002
60
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
65
NUT HORN TO BRACKET M8
70
REPAIR KIT TORSION BAR BEARING,D 191291
100
SHOCK ABSORBER REAR AXLE
105
RUBBER MOUNTING TOP AND BOTTOM
110
SPACER TUBE RUBBER PAD
115
BUSHING BOTTOM
115
BUSHING TOP
120
SCREW. HEXAGON HEAD BOLT LEAF SPRING TO RUBBER MOUNTING M14X1.5X150
120
SCREW PARTICLE FILTER
125
WASHER SHOCK ABSORBER TO FRONT AXLE
130
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
130
NUT BRACKET TO BATTERY CASE
150
RUBBER SPRING REAR SPRING STOP
160
BRACKET RUBBER SPRING TO BRACKET
