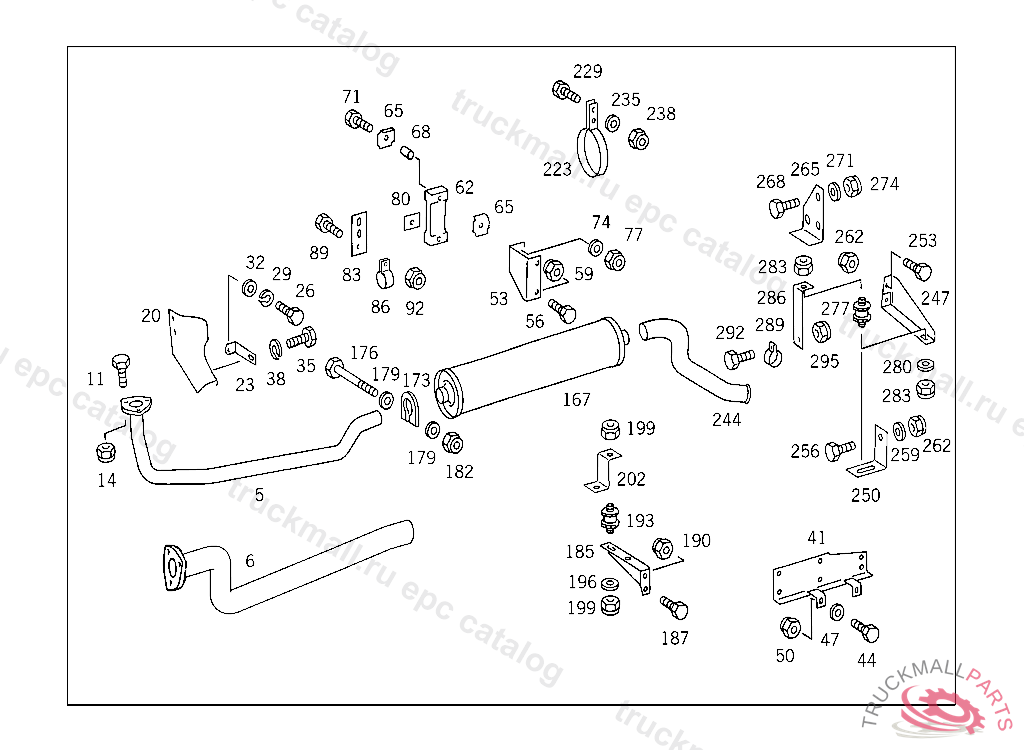

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
11
SCREW CROSS MEMBER TO SIDE MEMBERS
14
NUT , Replaced By: N910113010004
41
PROTECTIVE PLATE ,B 984609
44
SCREW BRACKET TO TORSION BAR,4 9511495 554754
47
WASHER BRACKET TO STEERING GEAR
50
NUT , Replaced By: N910113010002
53
SUPPORT FRONT EXHAUST PIPE
53
SUPPORT , Replaced By: A6884927216
56
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
56
SCREW , Replaced By: N304017010040
59
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
NUT BRACKET TO SIDE MEMBER,XB209706
62
DAMPING PAD FRONT EXHAUST PIPE,B 884219
65
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
68
SPACER TUBE FRONT EXHAUST PIPE,B 884219
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X45
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X45
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
71
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
74
WASHER TRAILER PLUG SOCKET TO BRACKET
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
INSULATING WASHER. INSULATION , Replaced By: A3094900037
83
SUPPORT EXHAUST PIPE TO SUPPORT
86
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
89
SCREW HAND PUMP TO BRACKET
92
NUT , Replaced By: N910113010004
167
EXHAUST MUFFLER ,D 082587
167
EXHAUST MUFFLER ,D 082587
167
EXHAUST MUFFLER , Replaced By: A6884907201
167
EXHAUST MUFFLER , Replaced By: A6884907201
167
EXHAUST MUFFLER , Replaced By: A6884907201
167
EXHAUST MUFFLER
173
CLAMP REAR EXHAUST PIPE TO MUFFLER
173
CLAMP , Replaced By: A6734920140
176
SCREW AT SHIFT LEVER M 8X100
176
SCREW SHIFT LEVER
179
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
182
NUT HORN TO BRACKET M8
182
NUT , Replaced By: A1201420072
185
BRACKET EXHAUST MUFFLER,FRONT
187
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
187
SCREW ANGLE TO CROSS MEMBER M 10X30
190
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
190
NUT BRACKET TO SIDE MEMBER,XB209706
193
RUBBER BUFFER EXHAUST MUFFLER
196
WASHER GROUND CABLE
199
NUT , Replaced By: N913023010002
199
NUT BRACKET TO RETARDER
202
SUPPORT
223
CLAMP EXHAUST MUFFLER TO SUPPORT,B 906194
223
CLAMP , Replaced By: A6884917240
223
CLAMP EXHAUST MUFFLER TO SUPPORT
229
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
235
WASHER TRAILER PLUG SOCKET TO BRACKET
238
NUT HORN TO BRACKET M8
238
NUT , Replaced By: A1201420072
238
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
244
REAR EXHAUST PIPE REAR
244
REAR EXHAUST PIPE (TAIL PIPE),B 984610
244
REAR EXHAUST PIPE , Replaced By: A6884927804
244
REAR EXHAUST PIPE
247
BRACKET TAIL PIPE TO SIDE MEMBER
250
BRACKET EXHAUST MUFFLER
253
SCREW BRACKET TO BUMPER,LEFT M 10X25
253
SCREW BRACKET TO FRAME M 10X28
262
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
277
RUBBER BUFFER EXHAUST MUFFLER
280
WASHER GROUND CABLE
283
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
283
NUT BRACKET TO SIDE MEMBER,XB209706
286
SUPPORT ,D 250888
286
SUPPORT EXHAUST PIPE TO BRACKET,B 984609
286
SUPPORT EXHAUST PIPE TO BRACKET
289
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
292
SCREW HAND PUMP TO BRACKET
295
NUT , Replaced By: N910113010004
