Поз.
Артикул
Описание

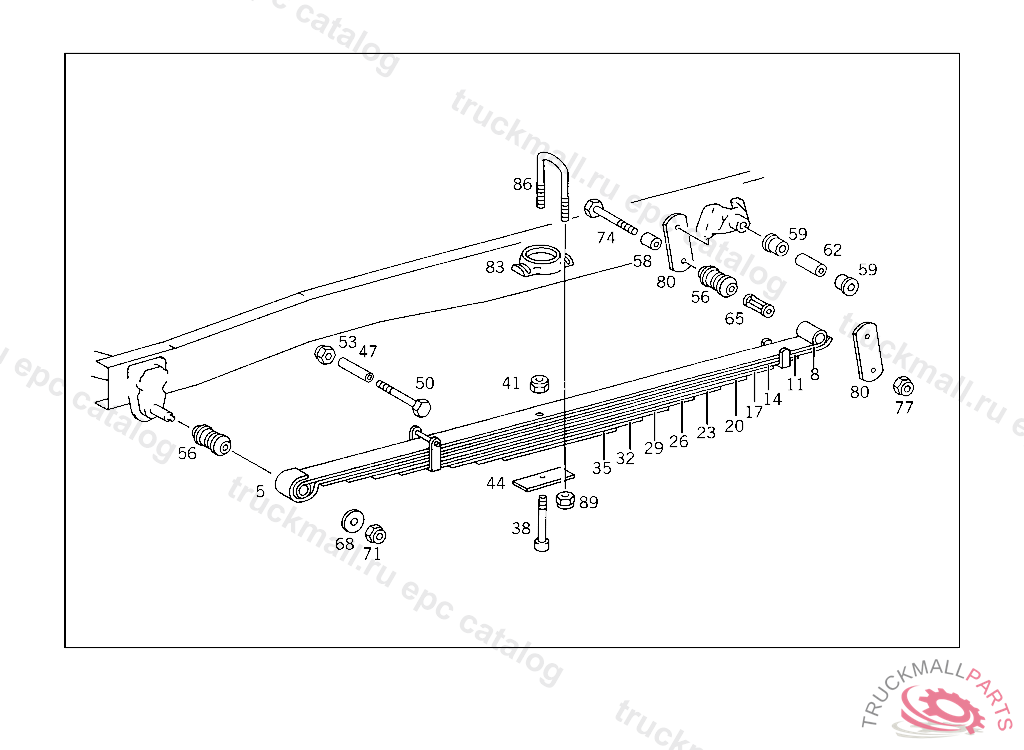

5
FRONT SPRING ,D 078172
5
FRONT SPRING ,D 078172
8
SPRING LEAFNO.1
11
SPRING LEAFNO.2
14
SPRING LEAFNO.3, TO 688 320 71 02, 72 02
17
SPRING LEAFNO.4
20
SPRING LEAFNO.5
23
SPRING LEAFNO.6
26
SPRING LEAFNO.7
29
SPRING LEAFNO.8
32
SPRING LEAFNO.9
35
SPRING LEAFNO.10
38
SPRING BOLTAM 10X105
41
NUT SPRING BOLT
44
SHIM
44
SHIM
47
SPACER TUBE , Replaced By: A0003213253
50
SCREW
53
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
58
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
59
BUSHING
59
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
62
SPACER TUBE FRONT SPRING TO FRONT-SPRING REAR BRACKET
65
SPACER TUBE SPRING SHACKLE TO SPRING REAR BRACKET 22 / 12,5 MM
68
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
71
NUT TORSION BAR TO BEARING BRACKET,5 904661
74
SCREW FRONT SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
77
NUT SUPPORT TO SIDE MEMBER
80
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET
83
PLATE FRONT SPRINGS TO FRONT AXLE
86
U-BOLT FRONT SPRINGS TO FRONT AXLE 150 MM,B 914378
86
U-BOLT FRONT SPRINGS TO FRONT AXLE M14X1,5X160 MM
89
NUT BRACKET TO BATTERY CASE
