Mercedes N006799005002 - ШАЙБА

710, LO610, LO712,LO 812 688.156

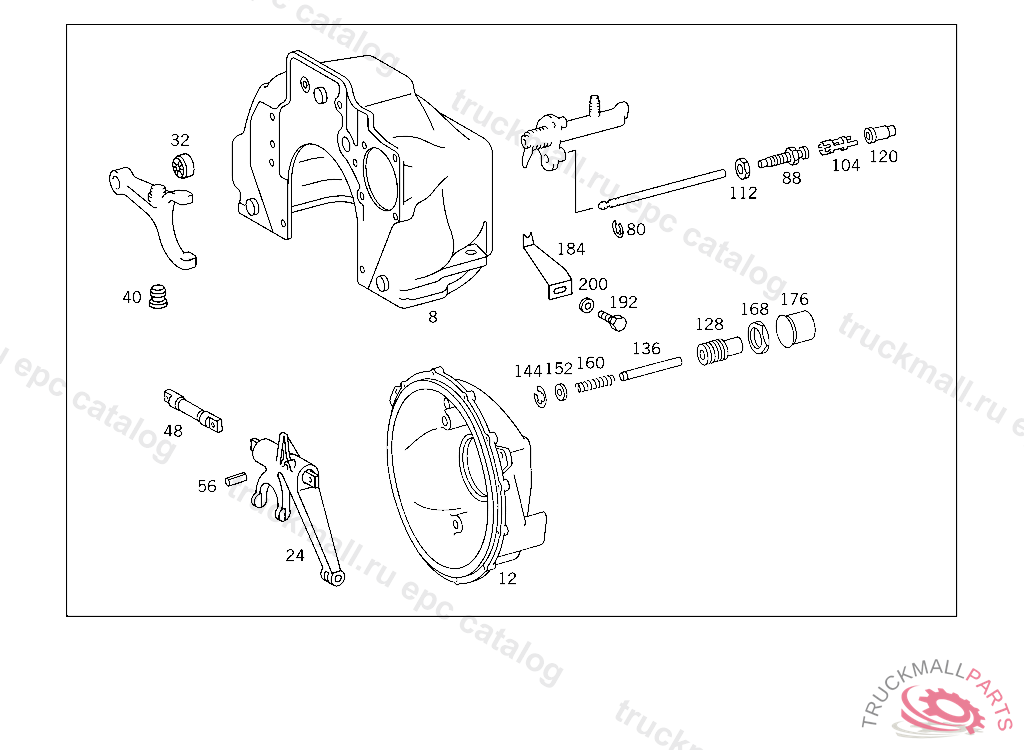

25 CLUTCH - 001 CLUTCH WEAR, INDICATOR IL.1

Поз.
Артикул
Описание
8
A6822510101
BELL HOUSING
12
A6842510101
BELL HOUSING
24
A6842500413
RELEASE LEVER
32
A0002540335
BEARING TOP
40
A0029920001
BUSHINGTO 688 250 00 13
48
A6202540207
SHAFT (CLUTCH RELEASE SHAFT)
56
N001481005043
CLAMPING SLEEVETO 684 250 04 13
80
N006799005002
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
88
A6502520171
SCREW WEAR INDICATOR
104
A3642540127
POINTER , Replaced By: A6882540027
104
A6552540027
POINTER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6502540127
104
A6502540127
POINTER CLUTCH LINING WEAR
104
A6882540027
POINTER WEAR INDICATOR
112
N000439016213
NUT WEAR INDICATOR
120
A6509880035
CAP CLUTCH SLAVE CYLINDER TO BELL HOUSING
128
A3962520071
SCREW WEAR INDICATOR
136
A3962540074
PIN , Replaced By: A3842547074
136
A3842547074
PIN WEAR INDICATOR
144
N912009008100
SNAP RING CLUTCH LINING WEAR INDICATOR
152
N000433008403
WASHER PULL ROD TO SHIFT LEVER
160
N002098001028
SPRING CLUTCH LINING WEAR INDICATOR
168
N074305022202
NUT CHECK VALVE TO AIR RESERVOIR
176
A0019880635
CAP WEAR INDICATOR
184
A6822540027
POINTER , Replaced By: A6822547027
184
A6822547027
POINTER WEAR INDICATOR
192
N000933010089
SCREW AT BELL HOUSING
200
N000125010517
WASHER GROUND CABLE
