Mercedes N007603016102 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

710/42,5 688.159

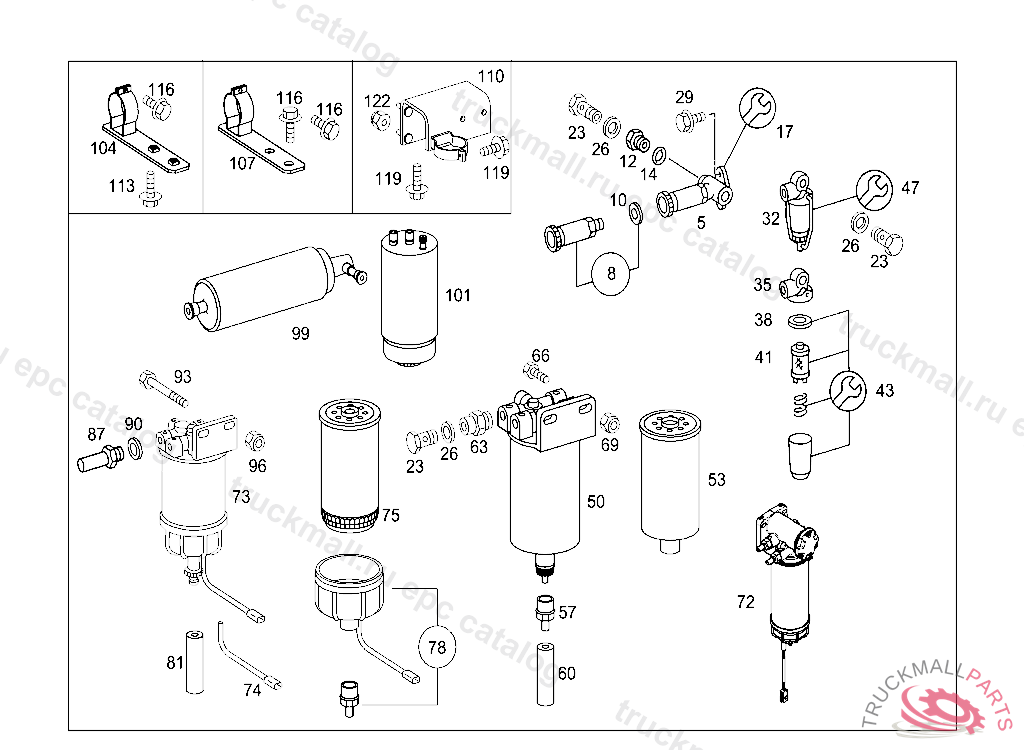

47 FUEL SYSTEM - 090 FUEL LINES,FUEL FILTER,AND BRACKET

Поз.
Артикул
Описание
72
A6884700190
73
A9584700490
FUEL FILTER FUEL FILTER TO SIDE MEMBER
74
A6885450024
75
A9584770115
FILTER ELEMENTTOMANN
75
A6884770015
78
A6884770007
78
A3760927201
FITTING. FILTER
78
A9584770116
PART NAME MISSINGTOA 958 470 04 90 (MANN)
81
A3869977082
HOSE WATER SEPARATOR
87
A9799970172
FITTING ON FUEL-WATER SEPARATOR TO A 688 470 00 90
87
A6889970072
90
A6889970345
90
N007603016102
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
93
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
99
A0014702694
FUEL PUMP. AUXILIARY PUMP FUEL TANK,ELECTRIC FUEL PUMP,ELECTROHYDRAULIC SHUT-OFF DEVICE
101
A9794770001
FUEL FILTER SHIELDED
110
A6884700081
BRACKET FUEL LINE BRACKET
119
N000000001147
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
122
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
