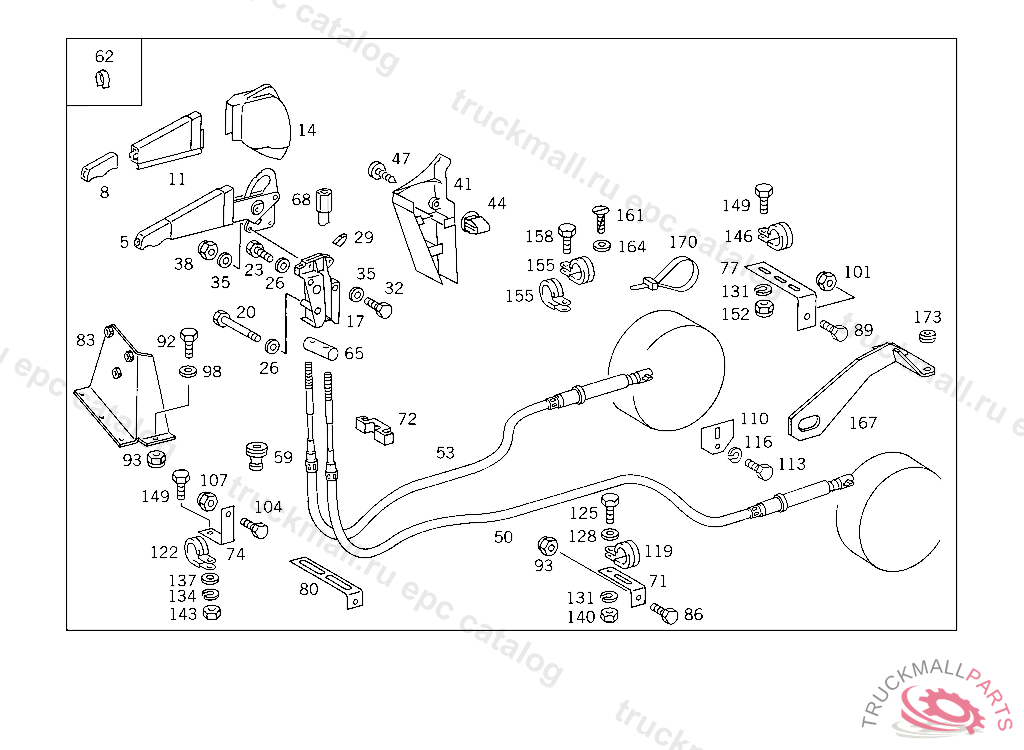

Поз.
Артикул
Описание
5
BRAKE LEVER , NO.8650I.......I.......I I II
8
HANDLE , NO.8650I.......I.......I I II .......INO.9985I.......I I II
11
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
14
COVERING , NO.8316I.......I.......I I II .......I.......INO.7C52I I II
14
COVERING , NO.8650I.......I.......I I II .......INO.9985I.......I I II
17
CONSOLE
17
CONSOLE
17
CONSOLE
20
SCREW CONSOLE TO CAB M 10X80
23
SCREW , Replaced By: N304017010002
26
WASHER CONSOLE TO CAB
29
STOP BUFFER. DAMPING RING
32
SCREW CROSS MEMBER TO SIDE MEMBERS
35
WASHER GROUND CABLE
38
NUT BRAKE LEVER TO CONSOLE
41
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
41
COVERING AT CONSOLE, NO.8650I.......I.......I I II .......INO.9985I.......I I II
44
TREENAIL FUSE BOX
47
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
50
BRAKE CABLE FRONT LEFT
50
BRAKE CABLE , Replaced By: A6884208285
50
BRAKE CABLE FRONT LEFT
53
BRAKE CABLE FRONT RIGHT
53
BRAKE CABLE , Replaced By: A6884207985
59
GROMMET
62
SPRING BRAKE CABLE
65
PIN BRAKE CABLE TO BRAKE LEVER
68
NUT BRAKE CABLE TO BRAKE LEVER
71
BRACKET FUEL LINE TO SIDE MEMBER
71
BRACKET FUEL LINE TO SIDE MEMBER
72
BRACKET BRAKE CABLE
74
BRACKET BRACKET TO FENDER BRACKET
80
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
86
SCREW PLUG SOCKET TO FRAME
89
SCREW BRACKET TO SIDE MEMBER
89
SCREW , Replaced By: N304017010040
89
SCREW BRACKET TO SIDE MEMBER
93
NUT HORN TO BRACKET M8
101
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
104
SCREW STEERING SHAFT BEARING TO CAB M 8X20
107
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
GUIDE PLATE REAR BRAKE CABLE TO BRACKET
113
SCREW PARKING BRAKE VALVE TO INSTRUMENT PANEL,TB108828
116
LOCK WASHER RAIL TO BATTERY SUPPORT
119
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
119
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
125
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
125
SCREW CABLE TO ALTERNATOR
128
WASHER PLUG SOCKET TO BRACKET
131
LOCK WASHER CABLE TO FUSE BOX
140
SCREW , Replaced By: N914146006102
146
CLAMP BATTERY CABLE TO BRACKET
146
CLAMP BRAKE HOSE BRACKET
149
SCREW CLAMP TO BRACKET
149
SCREW CLAMP TO BRACKET
152
NUT PUMP TO BRACKET
155
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
155
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
161
TAPPING SCREW BRAKE CABLE TO CROSS MEMBER,B 984609
164
WASHER VALVE TO BRACKET,5 602406
167
BRACKET
170
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
170
LOOM TIE ELECTRIC CABLE MOUNTING
170
LOOM TIE AIR INTAKE HOSE TO CLAMP
173
GROMMET LINE THRU LEFT SIDE MEMBER
