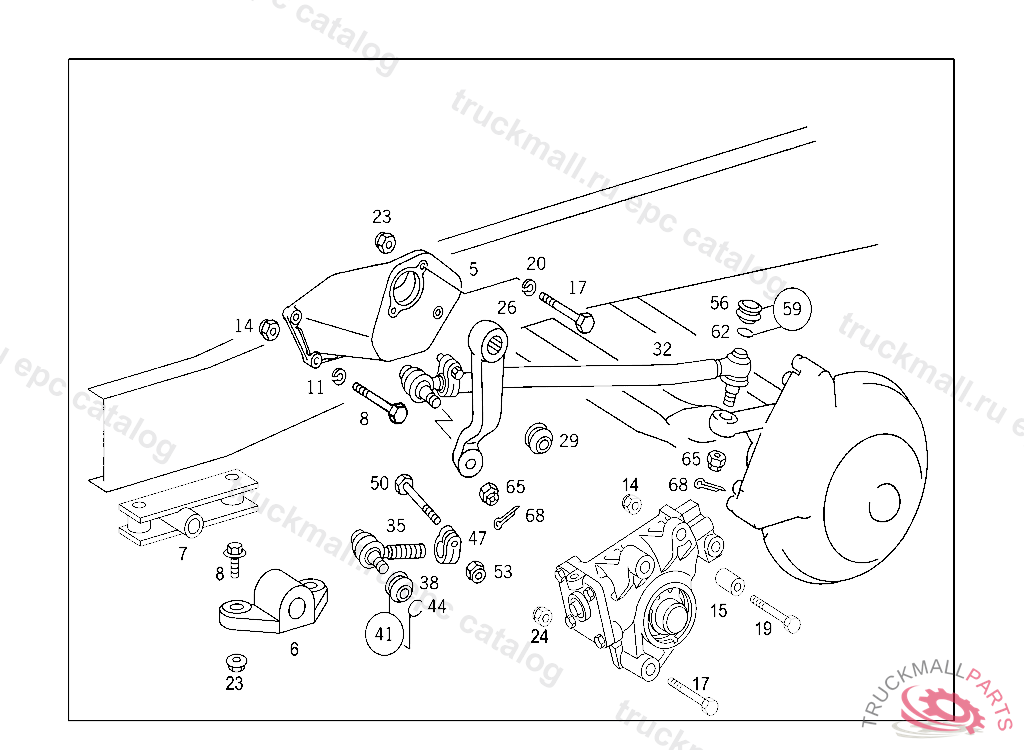

Поз.
Артикул
Описание
5
STEERING SUPPORT , HYDRAULIC STEERING-766.4D 523393
5
STEERING SUPPORT , MECHANIC STEERING-762.0
5
STEERING SUPPORT
7
STEERING SUPPORT STEERING SUPPORT TO FRAME
8
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
8
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
8
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
8
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
8
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
8
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
11
LOCK WASHER FITTING TO BRACKET
14
NUT BRACKET TO SIDE MEMBER M12X1.5
14
NUT BRACKET TO SIDE MEMBER M12X1.5
14
NUT RETARDER HOUSING TO TRANSMISSION CASE
15
BUSHING STEERING TO FRAME,D 441028D 523393
15
BUSHING STEERING TO FRAME,D 523393
17
SCREW STEERING GEAR TO STEERING BRACKET M 12X130, MECHANIC STEERING-762.0
17
SCREW STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
17
HEXAGON HEAD BOLT. SCREW STEERING TO FRAME M18X1,5X180,D 473986
17
HEXAGON HEAD BOLT SUPPORTING ARM TO ENGINE REAR MOUNTING M18X1.5X50
19
SCREW STEERING TO FRAME M18X1,5X90,D 473986
20
LOCK WASHER BELL HOUSING TO TRANSMISSION
23
NUT ALTERNATOR TO SUPPORT
23
NUT STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
23
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
26
PITMAN ARM , MECHANIC STEERING-762.0
26
PITMAN ARM
26
PITMAN ARM ,D 523394
26
PITMAN ARM , MECHANIC STEERING-762.0
26
PITMAN ARM
29
BOOT
32
DRAG LINKTRW, MECHANIC STEERING-762.0
32
DRAG LINKNAKATA, MECHANIC STEERING-762.0
32
DRAG LINKNAKATA
32
DRAG LINKTRW
32
DRAG LINKTRW, MECHANIC STEERING-762.0
32
DRAG LINKNAKATA, MECHANIC STEERING-762.0
32
DRAG LINK , HYDRAULIC STEERING-766.4
32
DRAG LINK , HYDRAULIC STEERING-766.4
32
DRAG LINK ,D 441028D 523393
35
DRAG LINK ENDTO 688 460 03 05,77 05,79 05
35
DRAG LINK ENDTO 688 460 05 05,75 05,74 05,76 05
38
BOOTTO 000 460 63 48
41
BOOTTO 000 460 62 48
44
RINGTO 000 463 20 96
47
CLAMP JOINT TO DRAG LINK TO 688 460 03 05,77 05, 78 05
47
CLAMP JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
47
CLAMPING PIECE JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
50
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
50
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
50
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
53
NUT , Replaced By: N910113010003
53
NUT , Replaced By: N910113010003
56
BOOT FIXED PART OF JOINT TO 688 460 03 05,77 05,79 05,78 05
59
BOOT FIXED PART OF JOINT TO 688 460 05 05,75 05,74 05,76 05
62
RINGTO 000 463 20 96
65
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
68
COTTER PINROCKINGER TYP 260 G140
