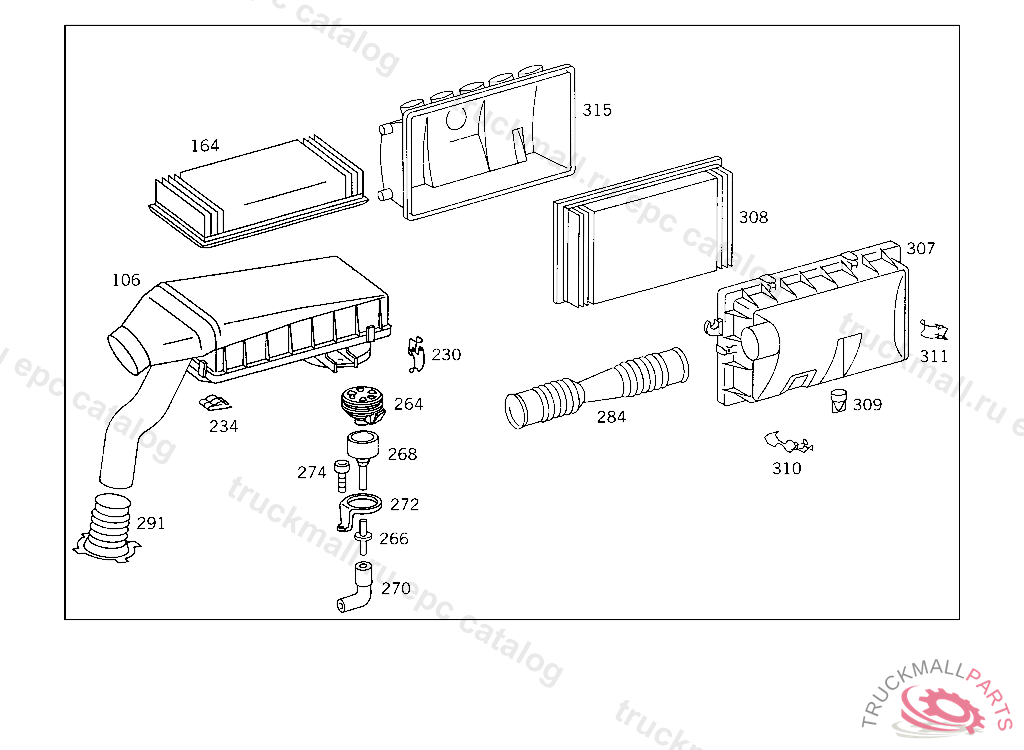

Поз.
Артикул
Описание
106
AIR CLEANERMANN & HUMMEL
164
FILTER ELEMENT
230
FASTENER
230
FASTENER , Replaced By: A6010900258
234
CLIP , Replaced By: A1199880078
234
CLIP
264
VACUUM BOX
266
CONNECTOR , UP TO ENGINE 602.962 12/52,22/62 007728 EXCEPT FOR 007701,007702,007716-007718,007722-007726
268
BOOT
268
BOOT
270
HOSE
272
BRACKET
274
SCREW OIL PIPE TO SLEEVE VALVE
274
SCREW STEERING LOCK TO STEERING COLUMN JACKET TUBE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
284
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
284
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
284
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
284
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
291
BOOT BETWEEN COLD AIR SCOOP & MUFFLER FILTER
307
COVER COVER TO AIR CLEANER
307
COVER COVER TO AIR CLEANER
307
COVER COVER TO AIR CLEANER
308
FILTER ELEMENT
308
FILTER ELEMENT
308
FILTER ELEMENT
309
SEPARATOR
310
FASTENER
311
FASTENER
315
HOUSING
315
FILTER BOWL
999
CAP
999
REGULATOR
999
INTAKE PIPE
999
MAINTENANCE INDICATOR
999
SPRING
999
SENDER UNIT AIR CLEANER INTAKE PIPE
999
HOSE COVERING AND MUFFLER FILTER
999
HOSE
999
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
999
SCOOP
999
HOSE
999
HOSE
999
HOSE BETWEEN MUFFLER FILTER AND LATERAL COVERING
999
HOSE
999
HOSE COVERING AND MUFFLER FILTER
999
HOSE FROM AIR CLEANER TO PIPE ELBOW, ORDER BY THE METER
999
HOSE COVERING AND MUFFLER FILTER
999
BRACKET AIR CLEANER
999
RIVET
999
HOSE
999
HOSE
999
HOSE
999
HOSE
999
HOSE BETWEEN COLD AIR SCOOP AND FILTER COVER
999
BOOT SCOOP TO AIR CLEANER
999
BUFFER HEATER UNIT
999
BOOT
999
BRACKET AIR CLEANER
999
SCREW , Replaced By: N304017006016
999
NUT BALL PIVOT TO LEVER
999
COMBINATION BOLT BRACKET TO INTAKE MANIFOLD
