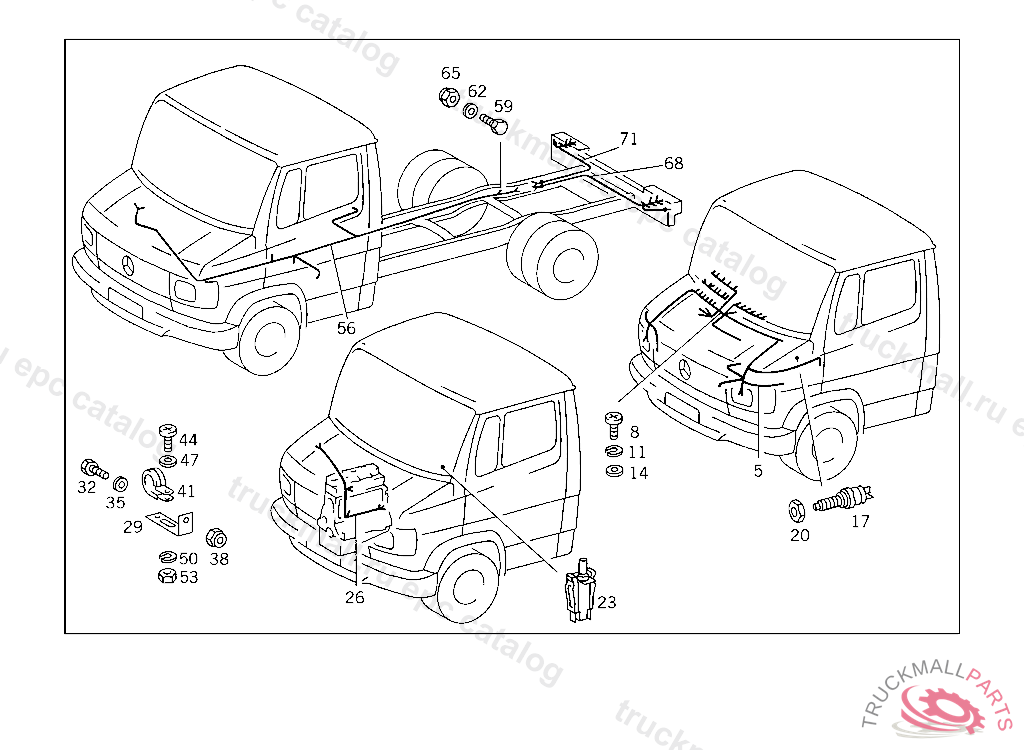

Поз.
Артикул
Описание
5
CABLE HARNESS MAIN CABLE HARNESS,TB099687
5
CABLE HARNESS MAIN CABLE HARNESS,TB099686
8
SCREW , Replaced By: N000000001146
11
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
17
SWITCH , Replaced By: A6965450009
17
SWITCH , Replaced By: A6935457309
17
SWITCH STOP LIGHT
20
NUT SWITCH
23
SWITCH HAND BRAKE CONTROL
26
CABLE HARNESS ENGINE
29
BRACKET , Replaced By: A3184280240
32
SCREW CLAMP TO BRACKET
35
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
38
NUT , Replaced By: N913004006001
41
CLAMP ENGINE AND FRAME
41
CLAMP BRAKE HOSE BRACKET
41
CLAMP LINE MOUNTING
41
CLAMP BATTERY CABLE TO BRACKET
44
SCREW ENGINE CABLE HARNESS
44
SCREWWABCO
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
53
NUT CLAMP TO BRACKET
56
CABLE HARNESS FRAME MOUNTED CABLE HARNESS,079042
56
CABLE HARNESS FOR FRAME MOUNTED CABLE HARNESS LEADING TO ENGINE,TB099687
59
SCREW BRACKET TO BUMPER,LEFT M 10X25
62
WASHER GROUND CABLE
65
NUT , Replaced By: N910113010000
