Поз.
Артикул
Описание

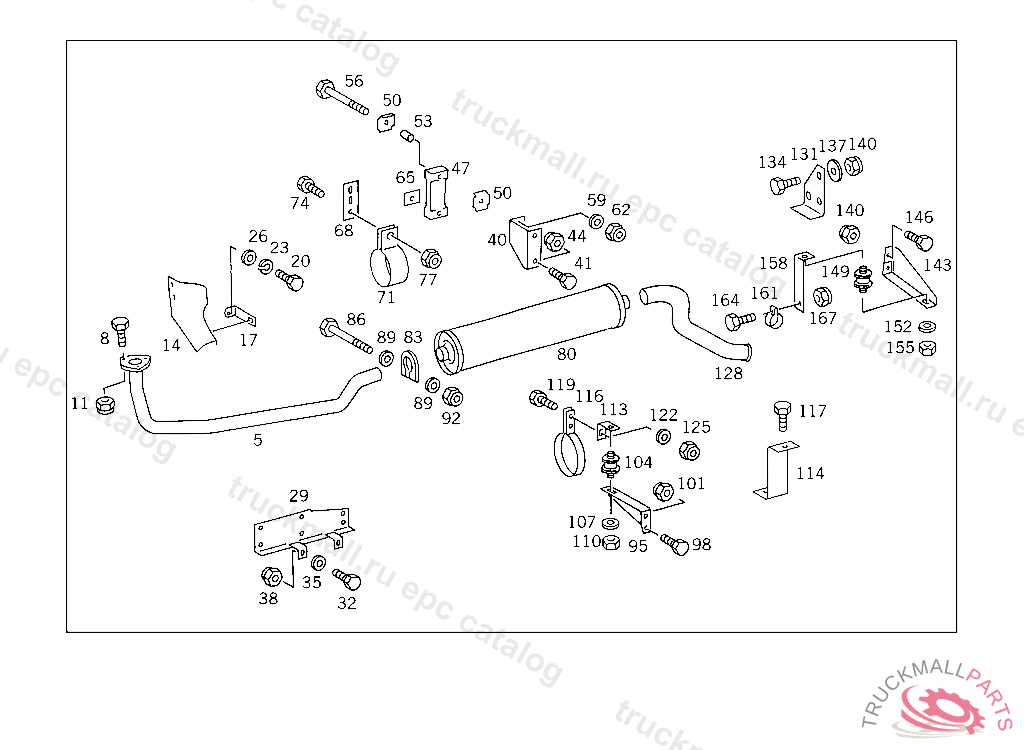

5
EXHAUST PIPE FRONT
8
SCREW CROSS MEMBER TO SIDE MEMBERS
11
NUT , Replaced By: N910113010004
29
PROTECTIVE PLATE ,B 984609
32
SCREW BRACKET TO TORSION BAR,4 9511495 554754
35
WASHER BRACKET TO STEERING GEAR
38
NUT , Replaced By: N910113010002
41
SCREW , Replaced By: N304017010040
44
NUT , Replaced By: N910113010000
47
DAMPING PAD FRONT EXHAUST PIPE,B 884219
50
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
53
SPACER TUBE FRONT EXHAUST PIPE,B 884219
56
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X45
56
HEX. HEAD SCREW. SCREW EXHAUST PIPE TO SUPPORT M 8X40
59
WASHER TRAILER PLUG SOCKET TO BRACKET
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
INSULATING WASHER. INSULATION , Replaced By: A3094900037
68
SUPPORT EXHAUST PIPE TO SUPPORT
71
CLAMP REAR EXHAUST PIPE TO SUPPORT,D 250888
74
SCREW CROSS MEMBER TO SIDE MEMBERS
77
NUT , Replaced By: N910113010004
80
EXHAUST MUFFLER , Replaced By: A6884907201
80
EXHAUST MUFFLER , Replaced By: A6884907201
80
EXHAUST MUFFLER
80
80
EXHAUST MUFFLER , Replaced By: A6884907201
83
CLAMP REAR EXHAUST PIPE TO MUFFLER
86
SCREW SHIFT LEVER
89
WASHER FRONT AND REAR EXHAUST PIPES TO MUFFLER
92
HEXAGON NUT SCREENING PLATE,5 163561
92
NUT , Replaced By: A1201420072
95
BRACKET EXHAUST MUFFLER,FRONT
98
SCREW , Replaced By: N304017010040
98
SCREW , Replaced By: N304017010002
101
NUT BRACKET TO SIDE MEMBER,XB209706
104
RUBBER BUFFER EXHAUST MUFFLER
107
WASHER GROUND CABLE
110
NUT BRACKET TO RETARDER
113
SUPPORT
116
CLAMP , Replaced By: A6884917240
116
119
SCREW MOUNTING CLAMP TO BRACKET AND TO FRAME
122
WASHER TRAILER PLUG SOCKET TO BRACKET
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
125
HEXAGON NUT SCREENING PLATE,5 163561
125
NUT , Replaced By: A1201420072
