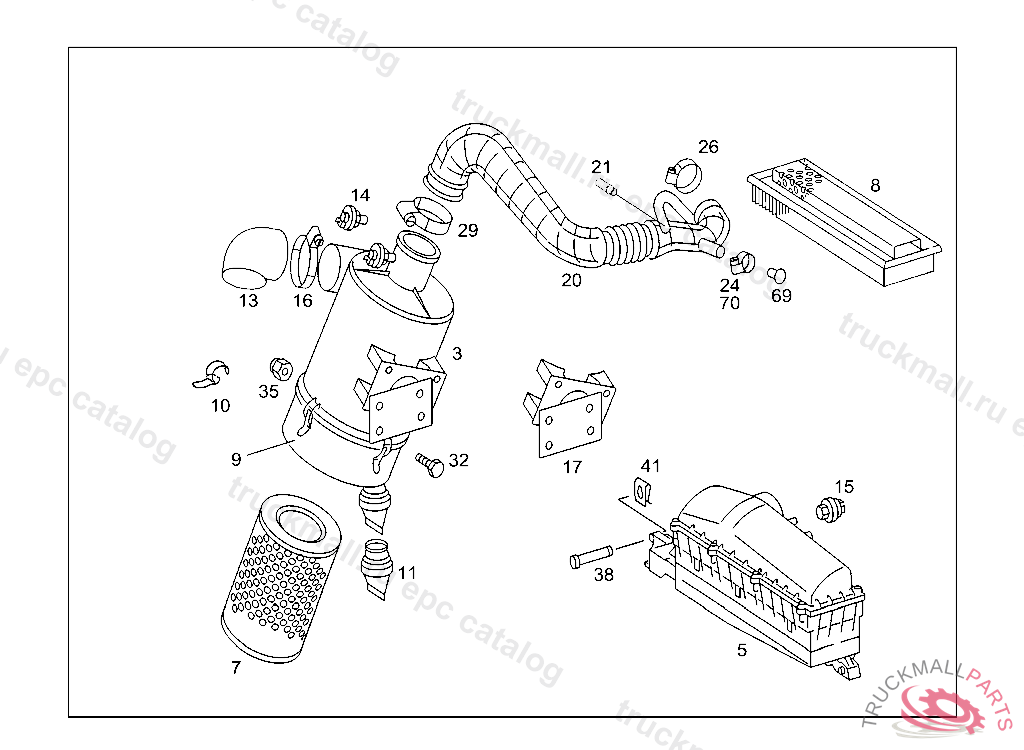

Поз.
Артикул
Описание
3
3
3
7
7
9
9
11
VALVE
11
VALVETO 376 090 96 01
14
SWITCH
17
17
20
20
20
20
21
24
CLAMP25-40X13 MM
24
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
24
CLAMP HOSE TO FITTING AND TO OIL TANK
24
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
26
CLAMP , Replaced By: N000000000667
26
CLAMP , Replaced By: N000000000673
26
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
29
CLAMP HOSE 70-90X13 MM
29
CLAMP , Replaced By: N000000000674
29
CLAMP AIR INTAKE PIPE TO ENGINE "100"
29
CLAMP , Replaced By: A0059970690
32
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
35
NUT ALTERNATOR TO SUPPORT
69
COVER
999
CLAMP , Replaced By: N000000000672
999
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
