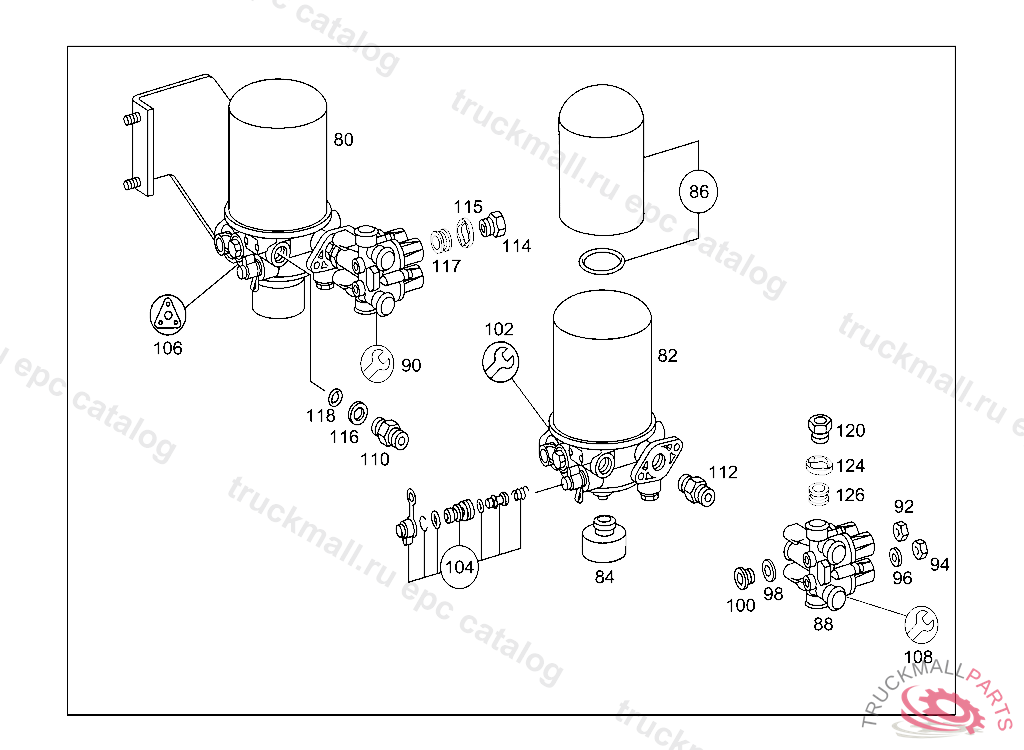

Поз.
Артикул
Описание
80
80
82
84
MUFFLER VALVE CENTRE TO 693 420 75 71
86
REPAIR KIT. AIR CLEANERTO 693 420 75 71
88
VALVE FOUR-CIRCUIT PROTECTIVE VALVE KNORR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
90
92
NUT , Replaced By: N304032008006
94
NUT BALL PIVOT TO LEVER
96
WASHER PLUG SOCKET TO BRACKET
98
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
100
SCREW PLUG SOLENOID VALVE M16
102
REPAIR KITTO A 664 431 01 15 KNORR
102
REPAIR KIT AIR DEHYDRATOR TO 382 420 75 71
104
PARTS KIT PRESSURE REGULATOR TO 693 420 73 71,75 71
106
GASKET KIT AIR DEHYDRATOR TO 000 430 19 15
108
110
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
112
CONNECTOR REAR AXLE VALVE,CONNECTION: "1"
114
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
114
SCREW. UNION SCREW , Replaced By: A0009973734
115
LOCK , Replaced By: A0009945448
116
THRUST RING CHECK VALVE TO AIR RESERVOIR
117
SEAL RING , Replaced By: A0009940747
118
O-RING CHECK VALVE TO AIR RESERVOIR
120
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
120
SCREW. UNION SCREW LINE CONNECTION
124
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
126
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
